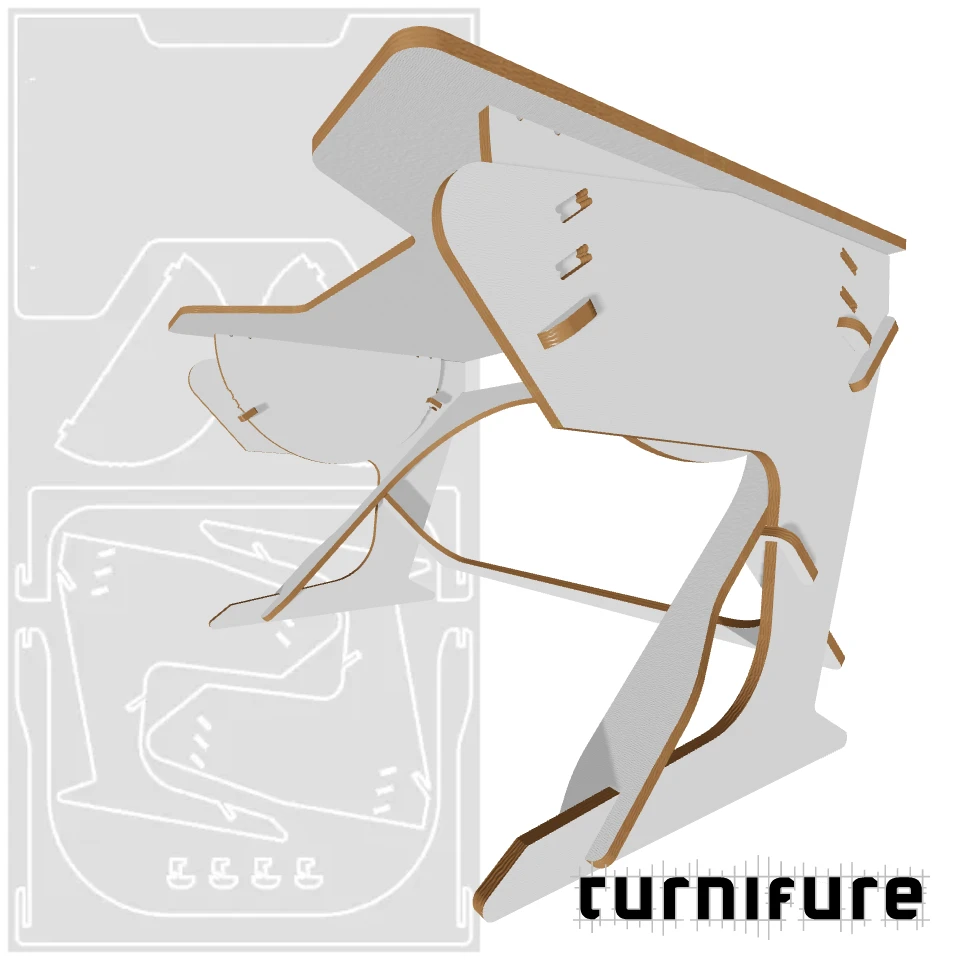

playDesk2 – Gaming Desk CNC Plans
$15.00
My heavily enhanced revamp of playDesk. Improvements include reinforced structural crossbars, a cut in the the desktop to route cables through and a more aggressive design.
Description
The revamped version of playDesk. Improvements include redesigned structural crossbars and desk levelers for increased rigidity, a cut in the back of the desktop to route cables through it and a new / more aggressive design. Overall dimensions remain the same.
– Desk height can be adjusted to 700 mm, 750 mm or 800 mm.
– Desk inclination can be adjusted by up to 10 degrees.
2 versions available:
- 1180 mm wide desk – 18 mm board
- 1180 mm wide desk – 3/4 in board
Fileset includes:

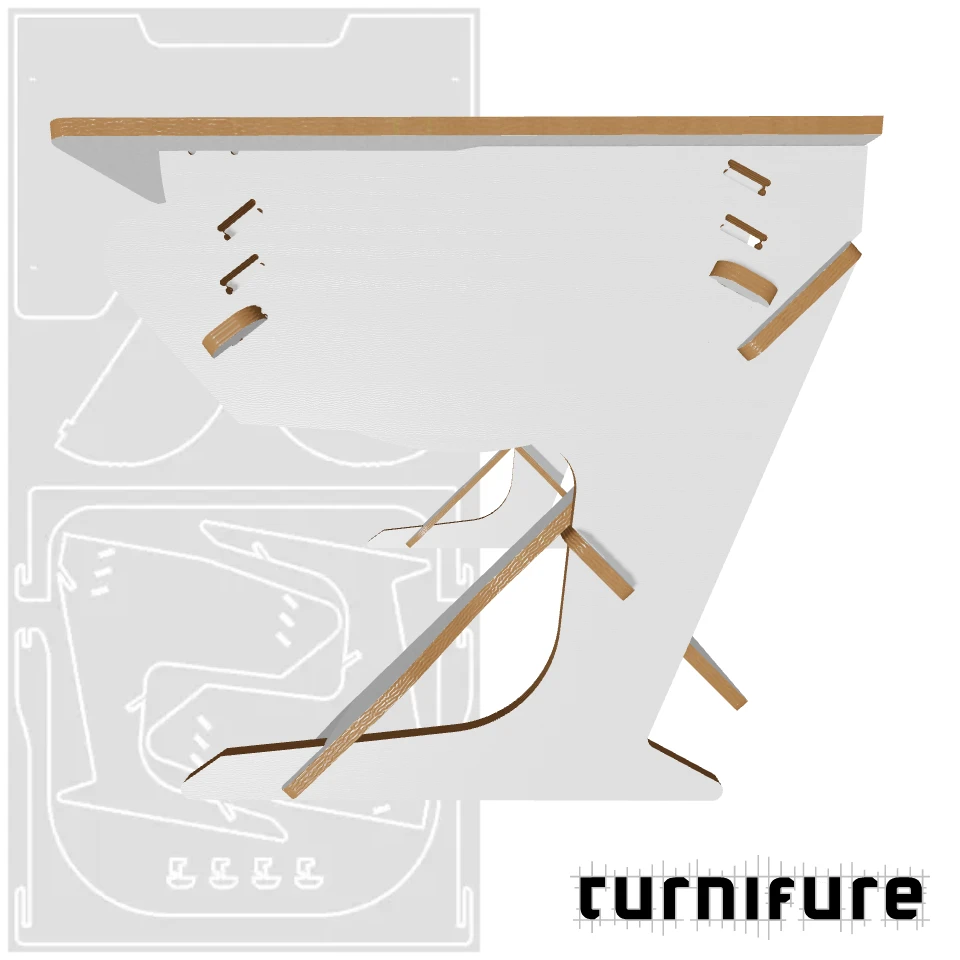

- DXF vectors file in OpenDesk format label naming
- PNG file for previewing the plan
- SVG file for Shaper Origin Compatibility
Milling Specs
Estimated Milling Duration:
- 6 mm cutting bit – 740 mm FR – 2 passes: 80 mins
- 8 mm cutting bit – 1500 mm FR – 1 pass (simulated below): 22 mins
Milling Simulation Time-Lapse
☝ Note: Every CNC machine is different and makers use different tools, milling strategies and speeds.
Assembly
Styling Simulator
Additional information
| Board thickness | 18 mm – International, 3/4 in (19 mm) – US |
|---|---|
| Board size | 1220 x 2440 mm | 4 x 8 feet |
| Boards quantity | 1 |
| Desk Width | 1200 mm |
| Suitable materials | Hardwood Plywood, MDF, Softwood Plywood |
| Brand | turnifure.com |
| License | Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) |
