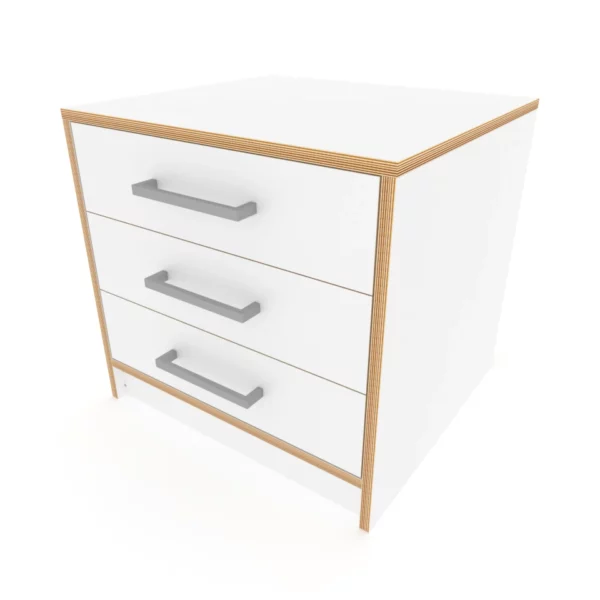

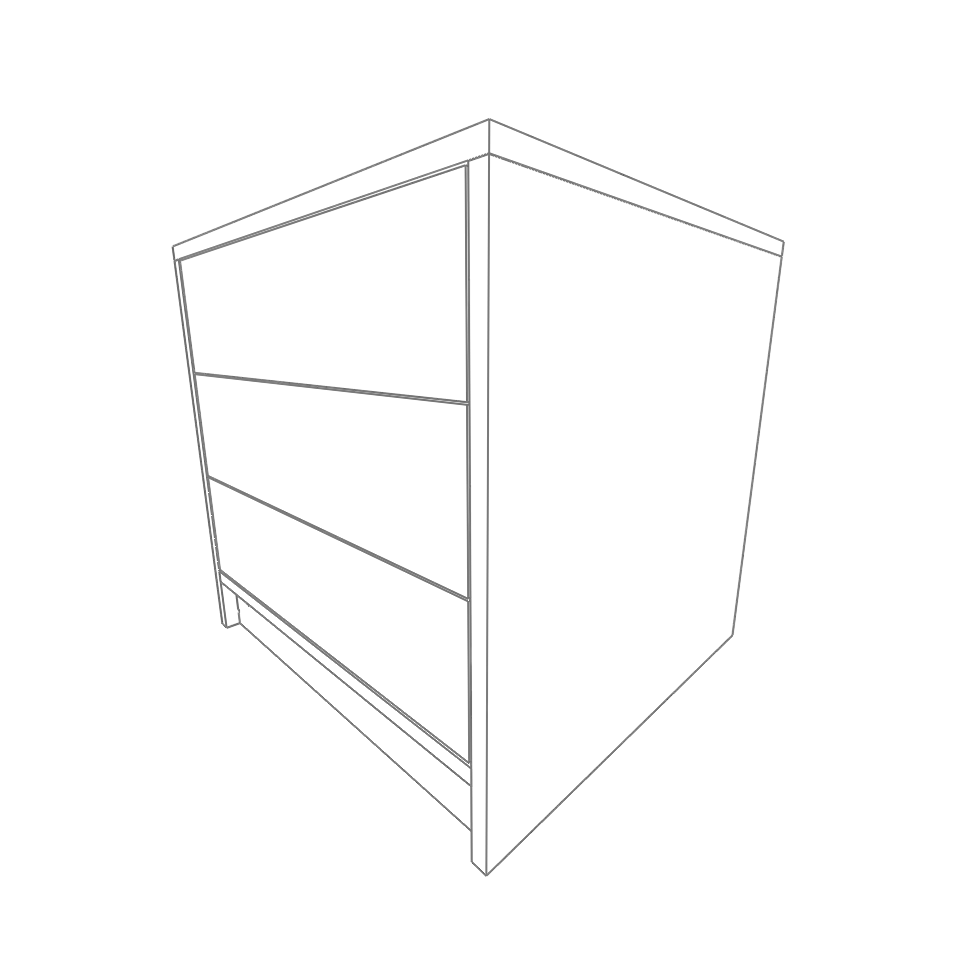

Drawers Cabinet (under dev)
UNLOCK
Complete drawers cabinet plans with tons of adjustment options and dynamically nested.
Select the external width, height and depth, quantity of drawers, clearance for drawer rails, material size and ModMaker will calculate the maximum size for the drawers, draw the parts and nest the plans for maximum material optimization.
THIS MODEL IS NOT READY YET.
We still need to add parameter-dependent ranges and thoroughly test it.
We are working on the separation between the material for the bottom of the drawers which is thinner, and must be nested separately.
ModMaker
- Adjust parameters.
- Generate.
- Download DXF and SVG files.
* ModMaker works best on desktop. For easier tuning email yourself this page and continue there.
* DXFs are optimized for Vectric, Autocad and Librecad. Request others or report issues here.
* Generated files are NOT stored! Remember to download and save them locally.
Additional information
| Estimated milling duration | 15 mins |
|---|---|
| Suitable materials | Hardwood Plywood, MDF, Particle Board, Softwood Plywood |
| Board thickness | 18 mm – International, 3/4 in (19 mm) – US |
| Boards quantity | 1 |
| Table size | 1200 round, 1200 x 1200 square |
| Brand | turnifure.com |
| License | Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) |
