CNC Plans for Rockpit - Sim Racing Cockpit - Standard - Material: 19.05mm
Ready to fabricate or customize?
Adjust material thickness, outer dimensions & export vector files
Customize this Plan →

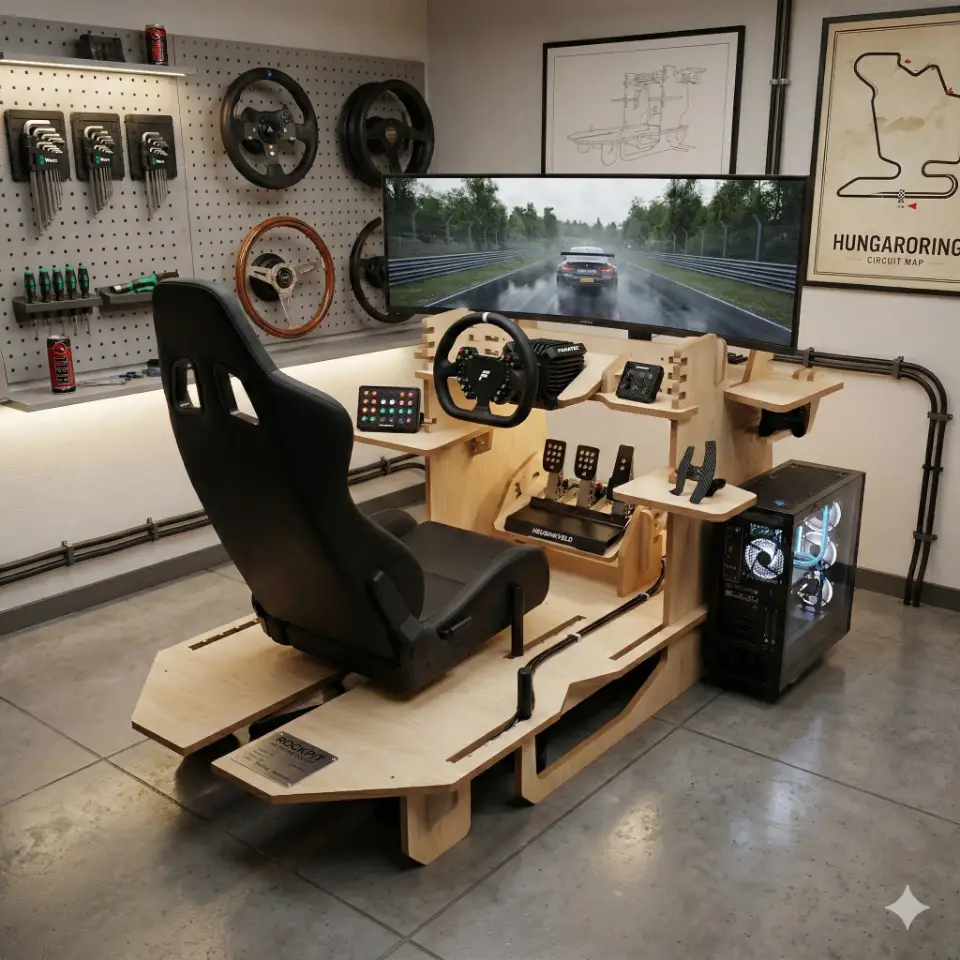

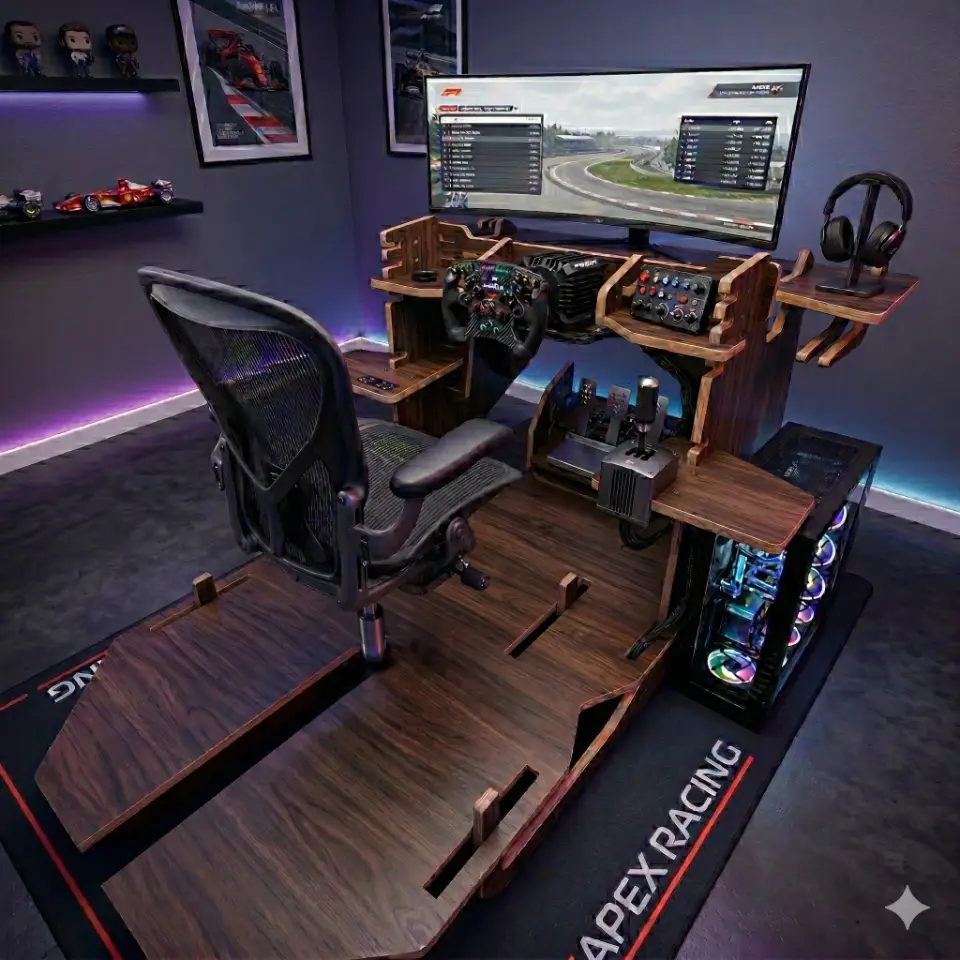

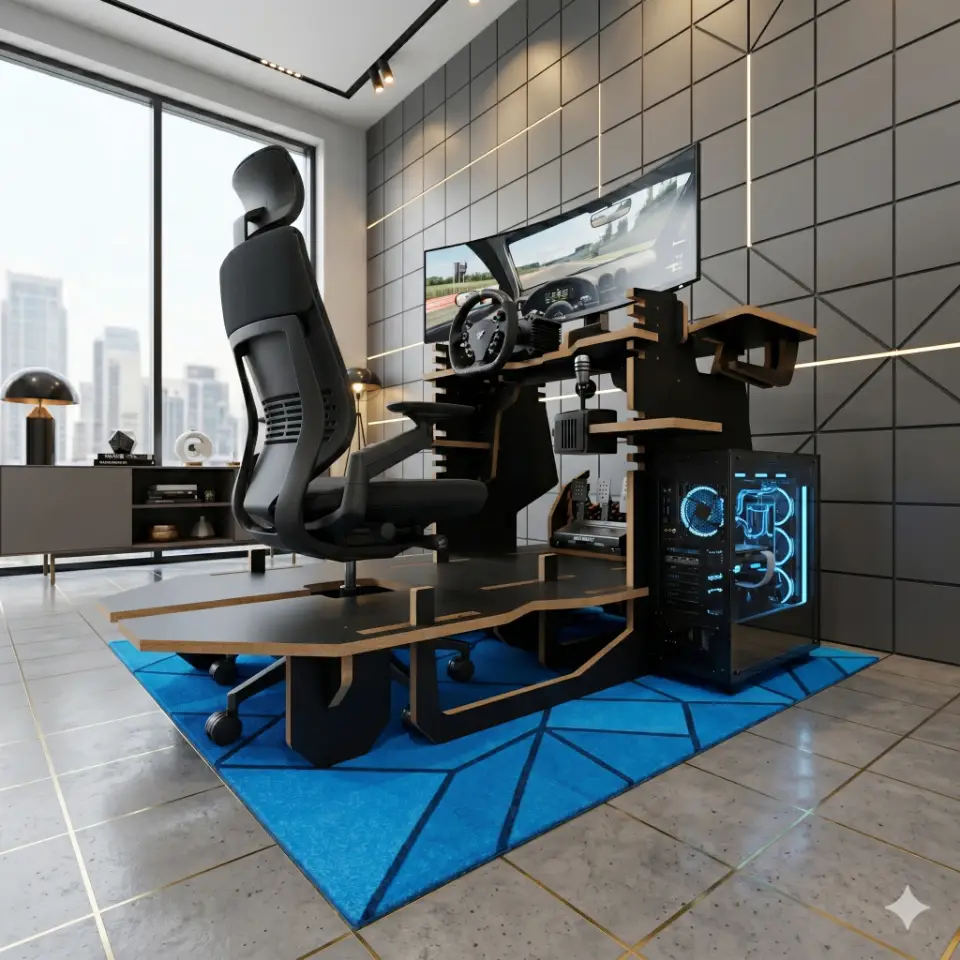

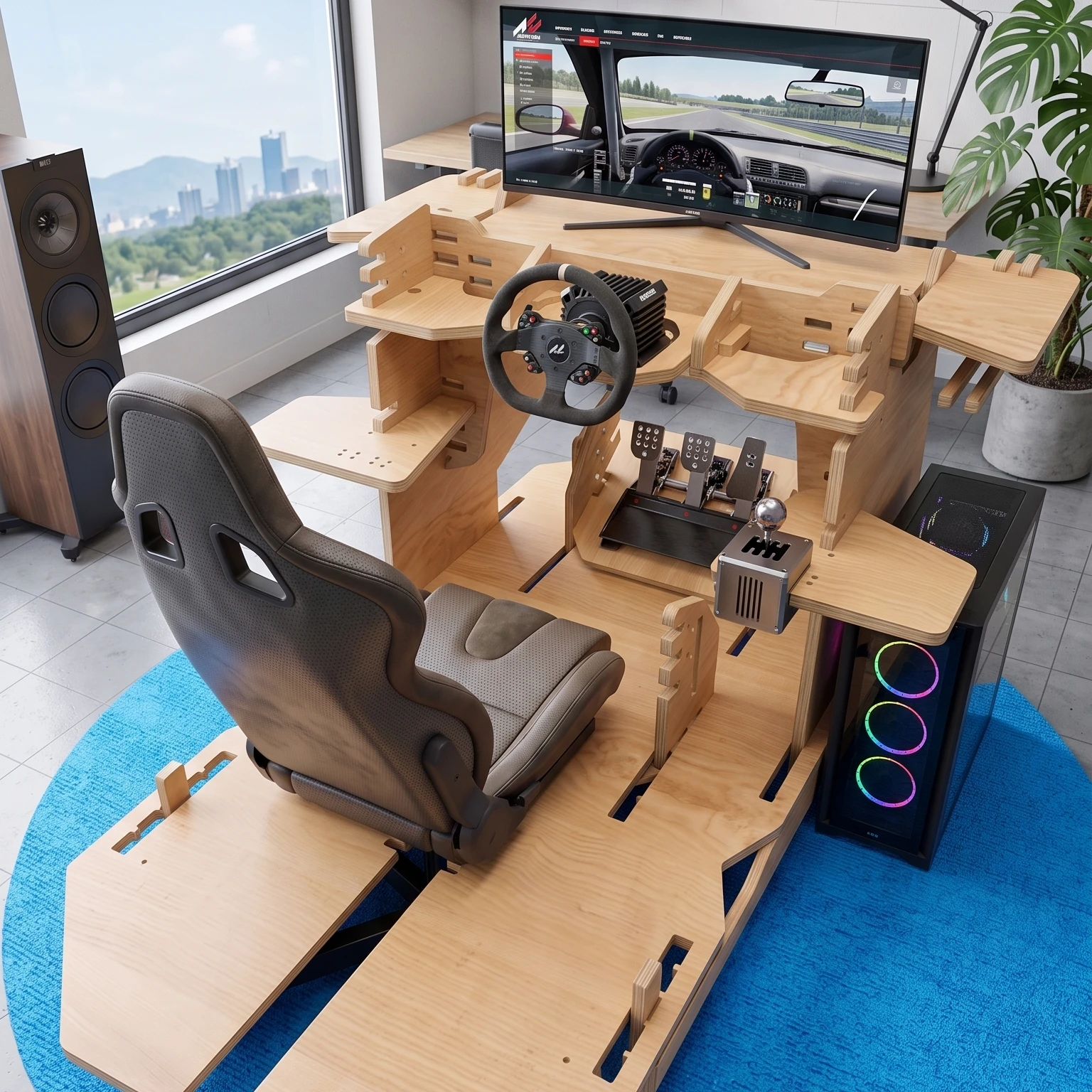

Design Concepts & Renderings
Specifications
| Parameter | Description | Value |
|---|---|---|
| Material Thickness | Thickness of your material | 19.05 mm |
| Permanent joints fit | Permanent joints tightness. 0 = very tight, 0.2 = looser | 0.11 mm |
| Loose inserts gap | Tightness of the daily-use inserts (smaller gap = tighter inserts) | 0.31 mm |
| Edgeband Thickness | Thickness of the edgeband | 3 mm |
| Tool bit diameter | Radius of the fillets and smallest concave curves | 6.46 mm |
Frequently Asked Questions
What material thickness is required for these plans?
These specific CNC plans are parametrically designed for 19.05 mm material. We recommend using high-quality Baltic Birch plywood or MDF that matches this thickness for an exact fit.
What file formats are included?
This parametric plan download generates clean DXF and SVG files, compatible with VCarve, Fusion 360, Shaper Origin, and most other CNC software.
