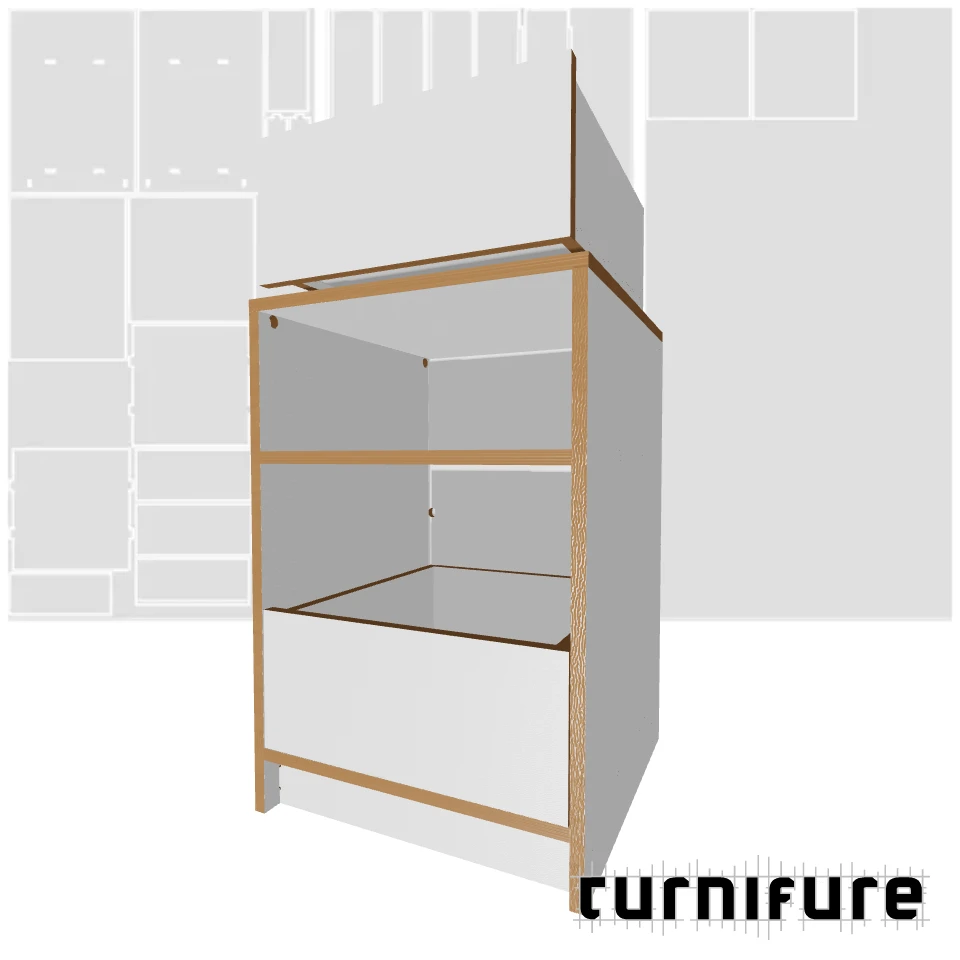

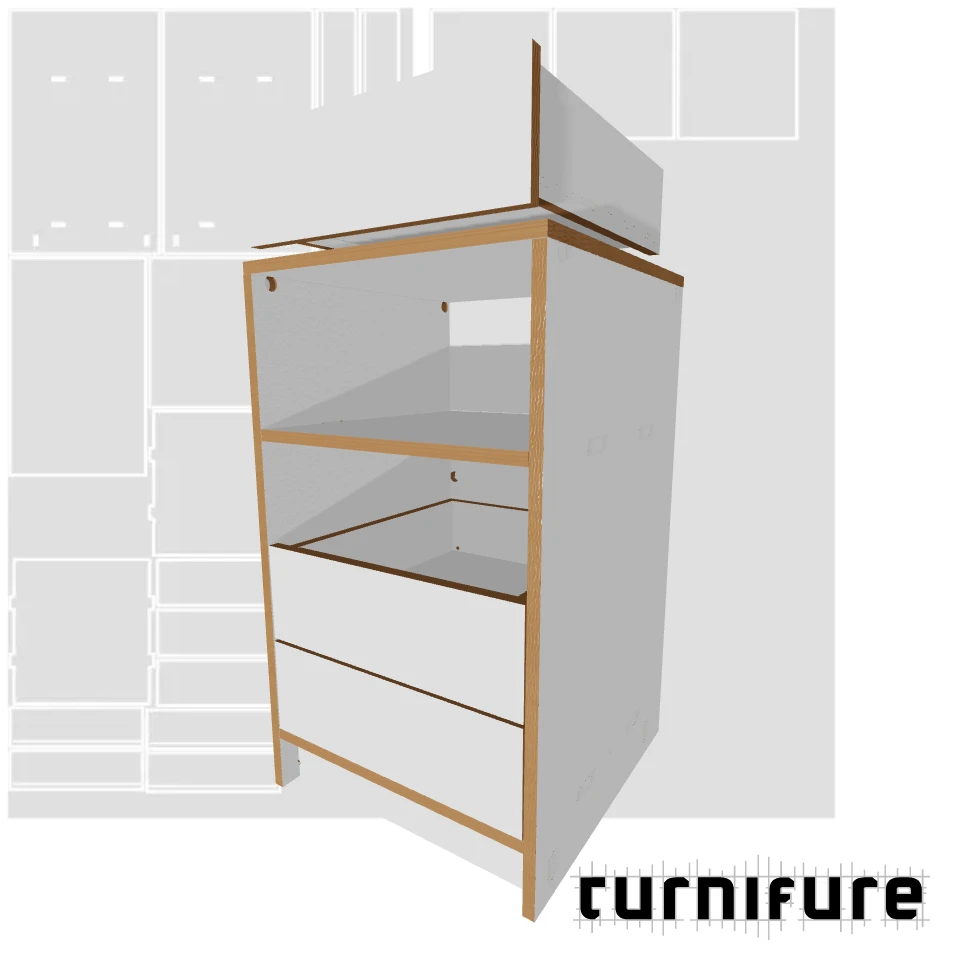

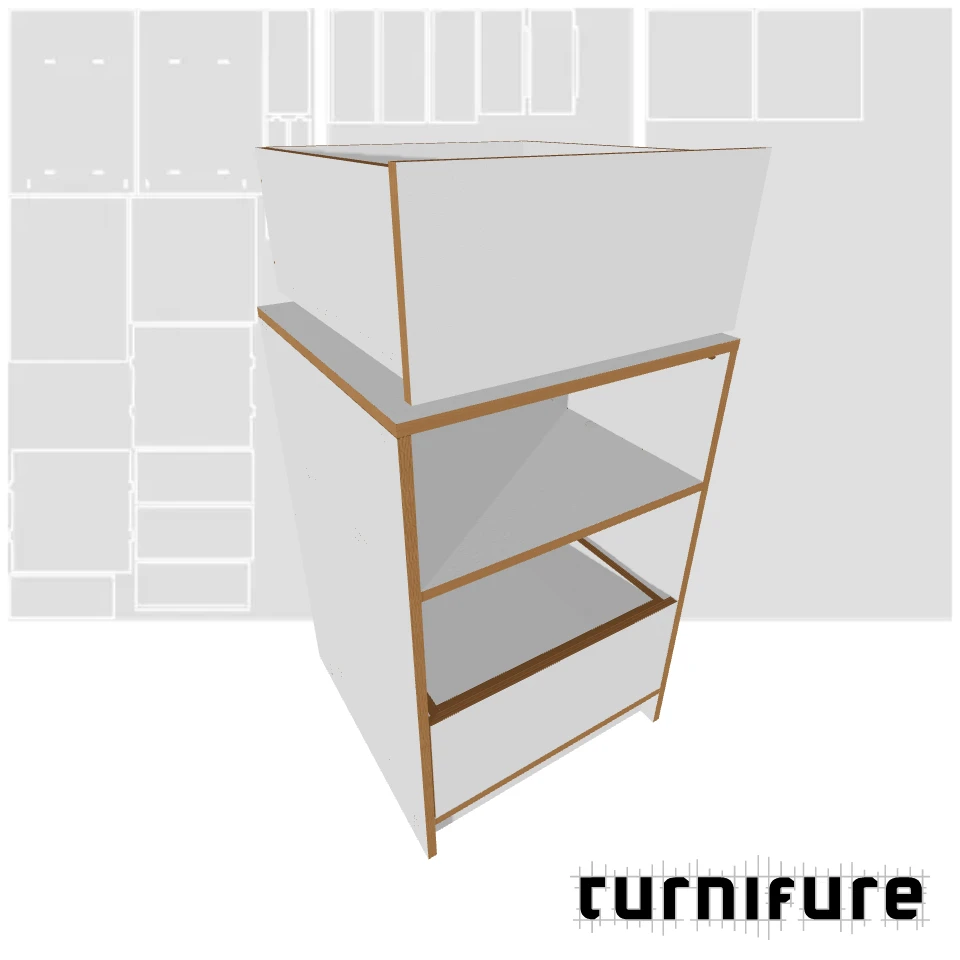

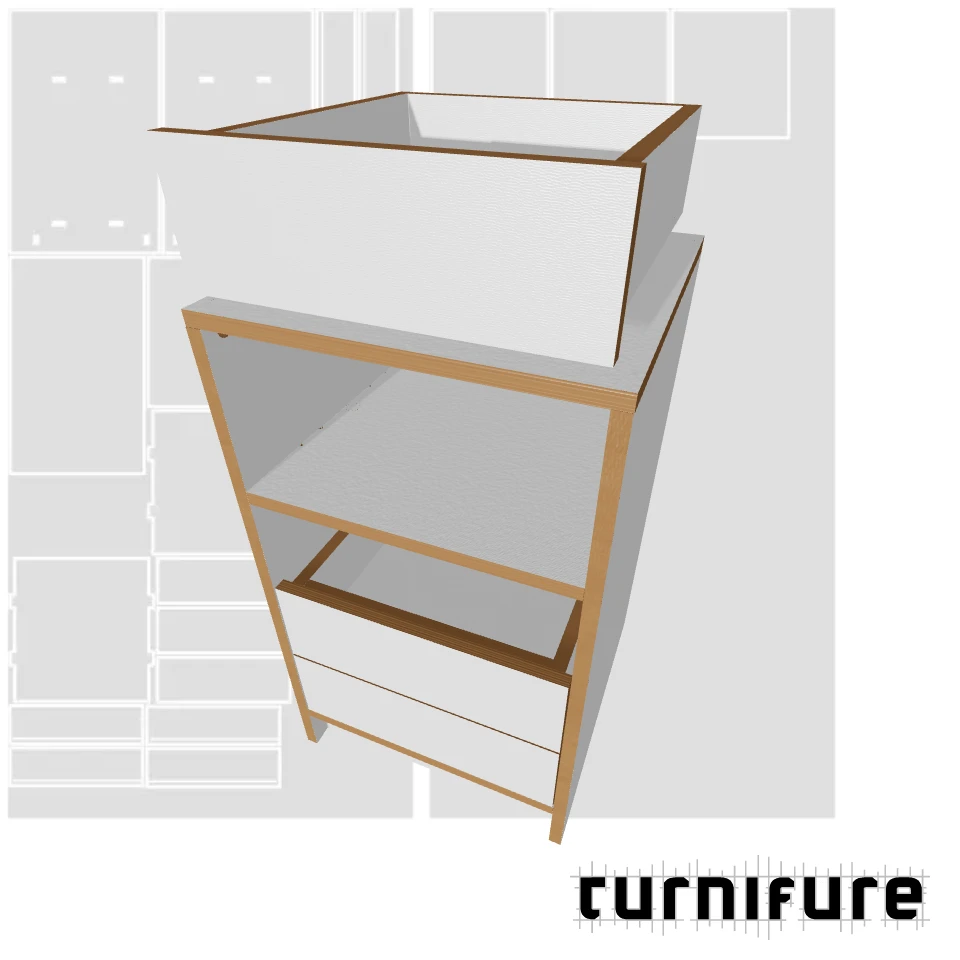

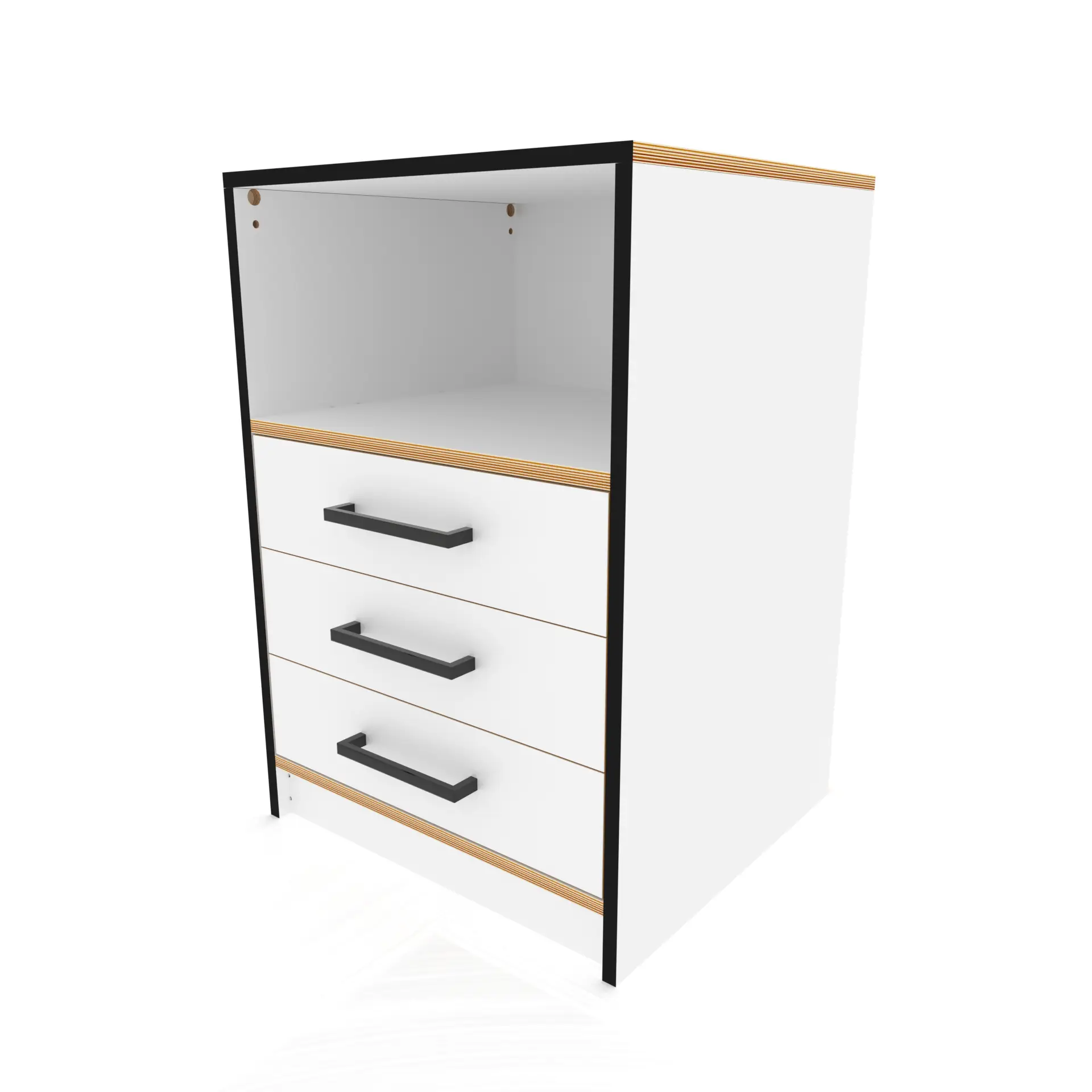

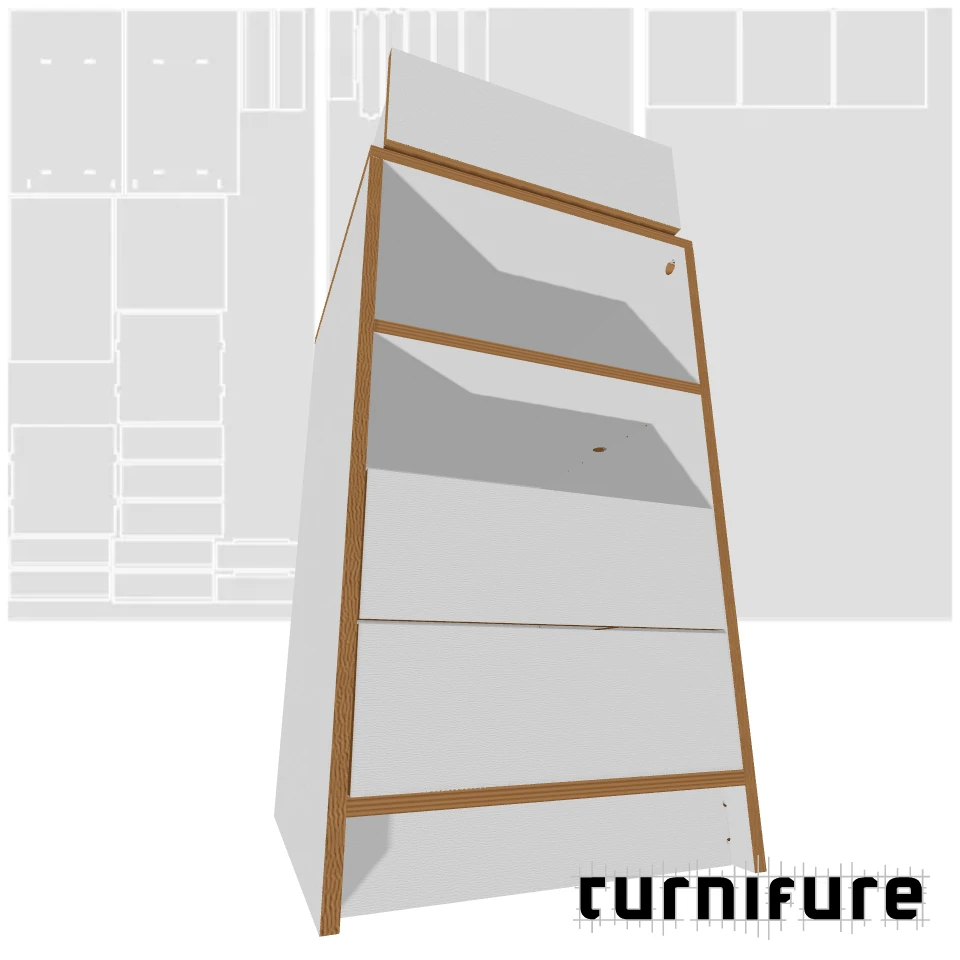

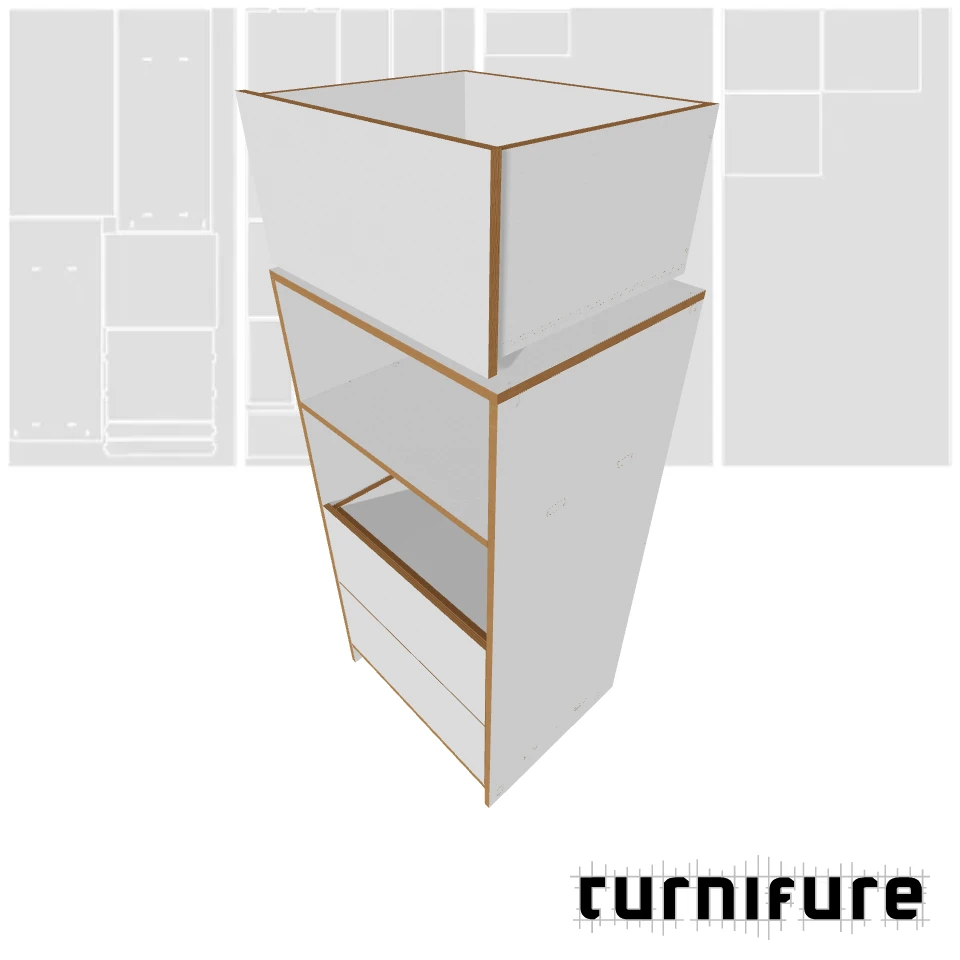

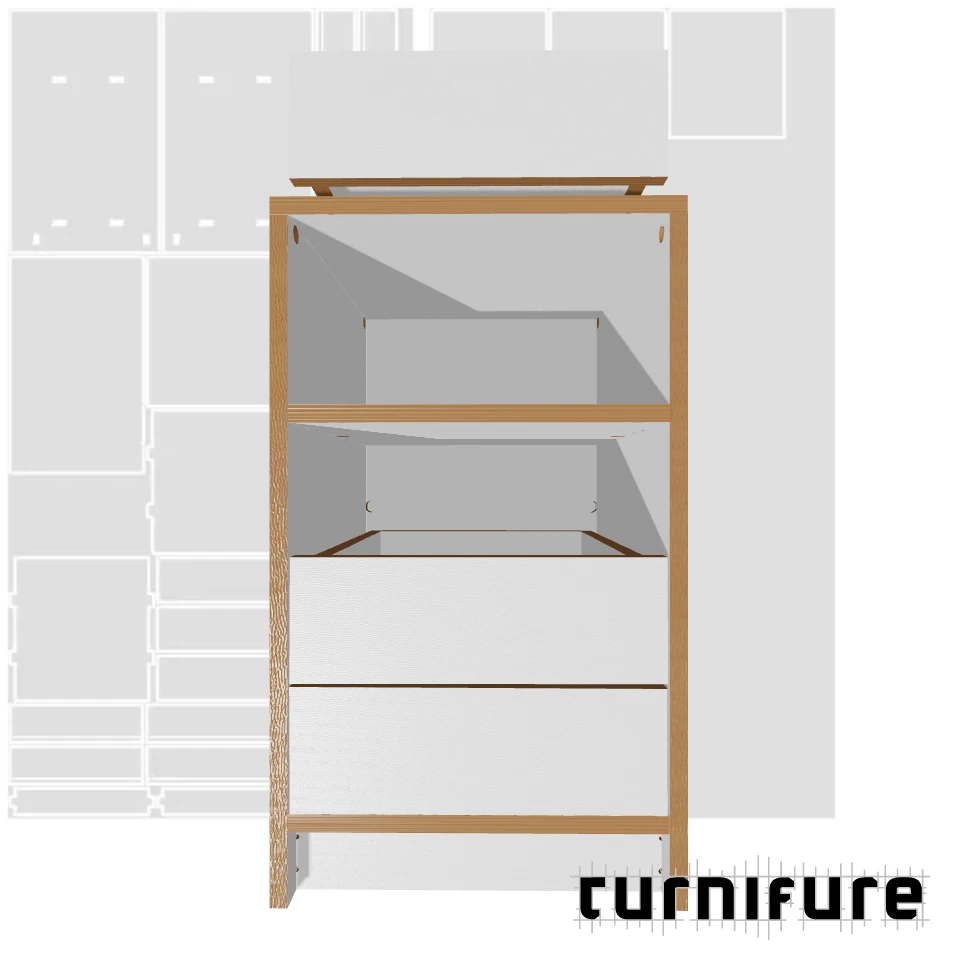

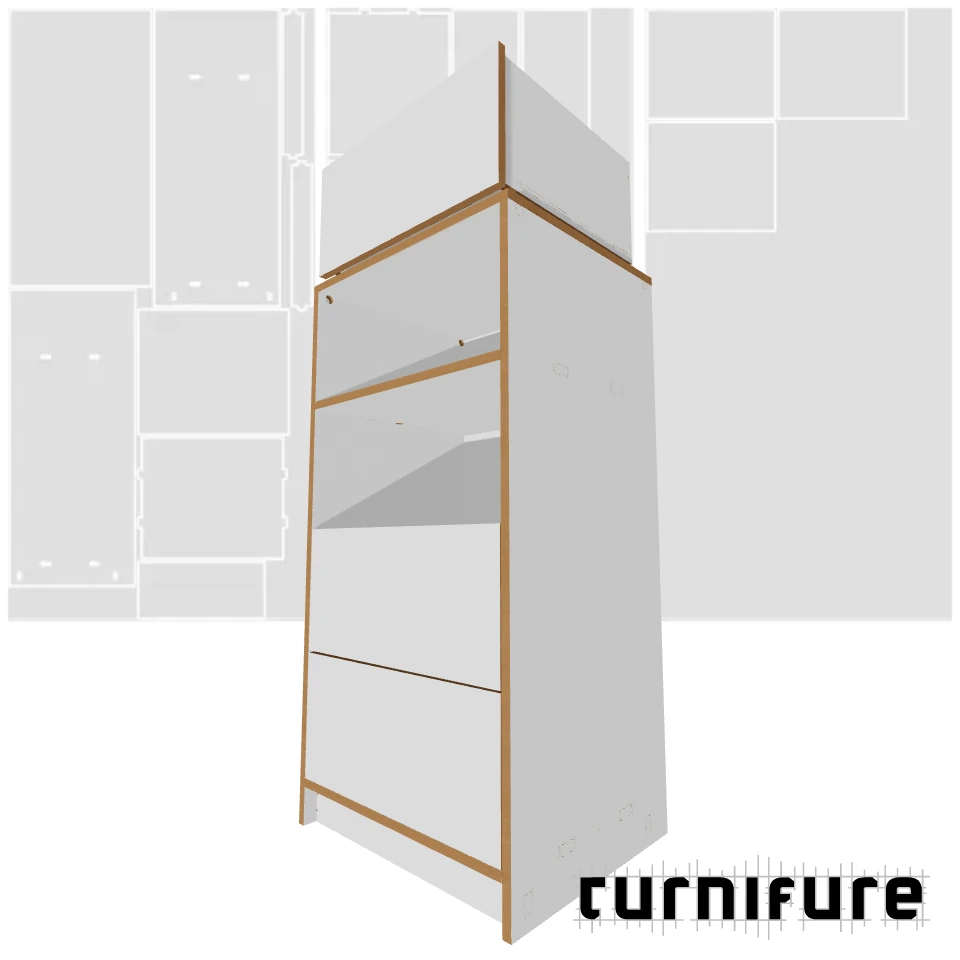

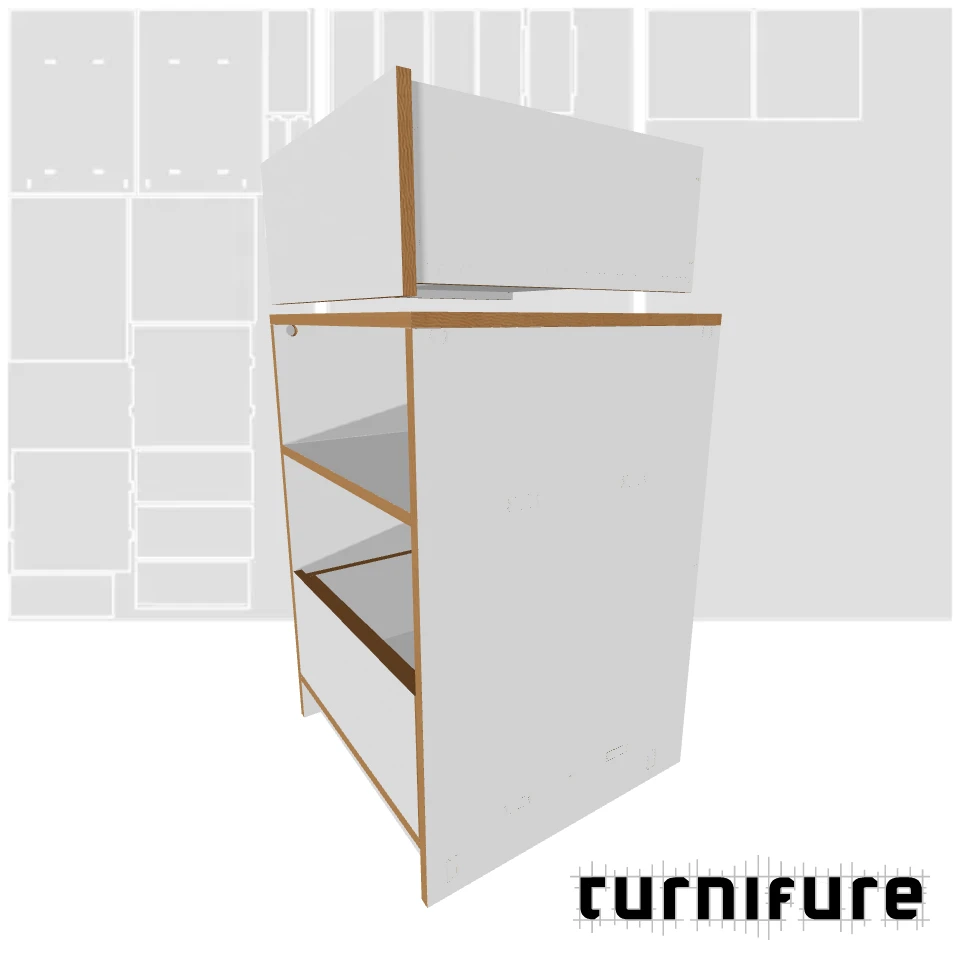

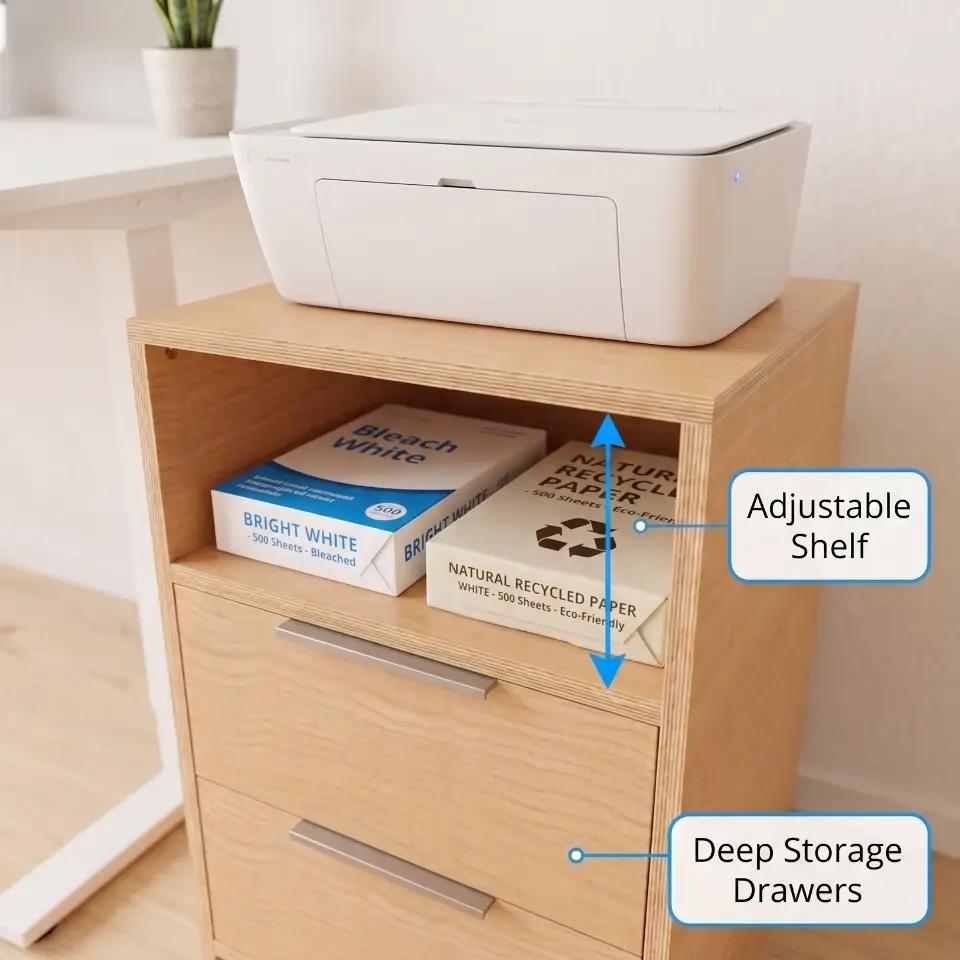

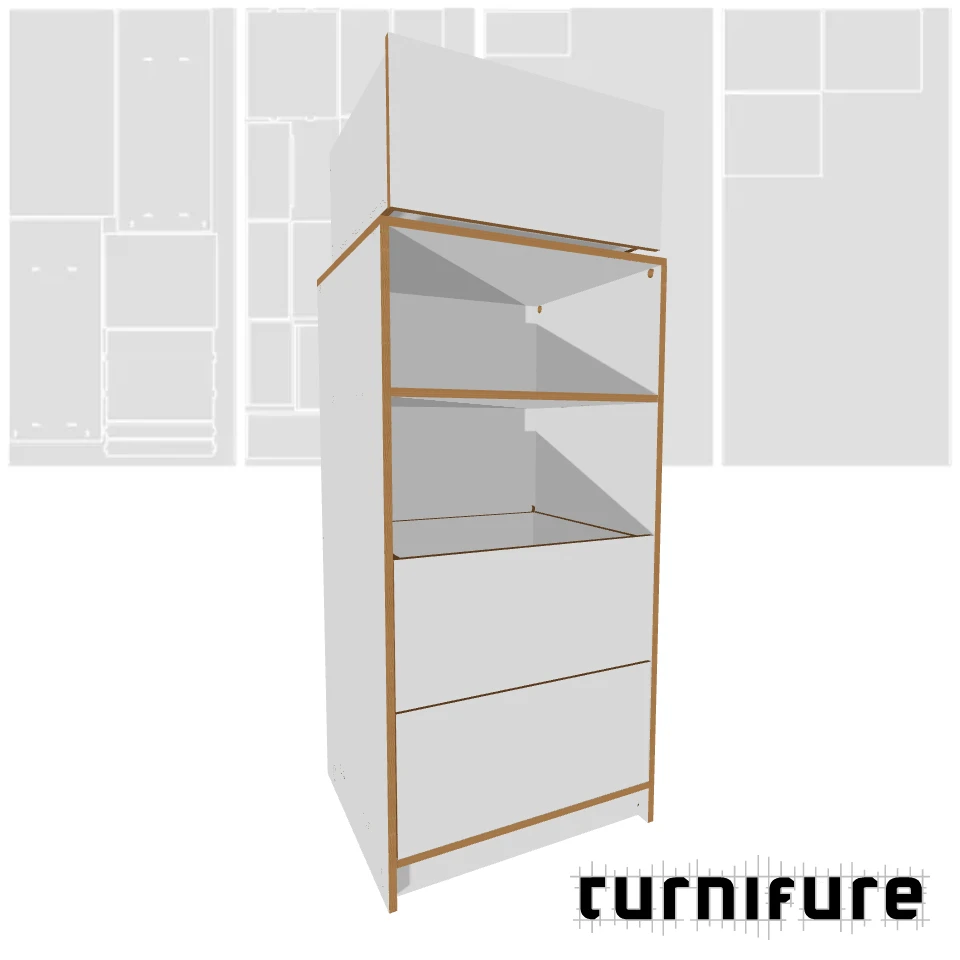

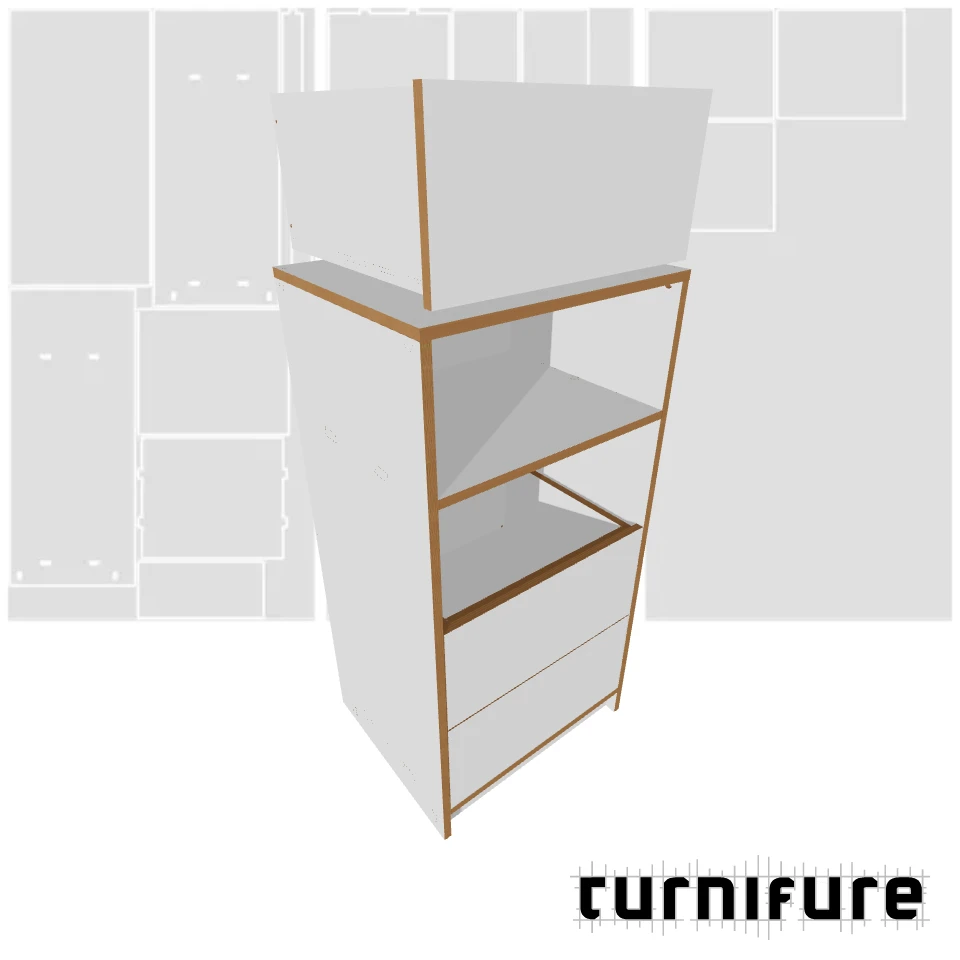

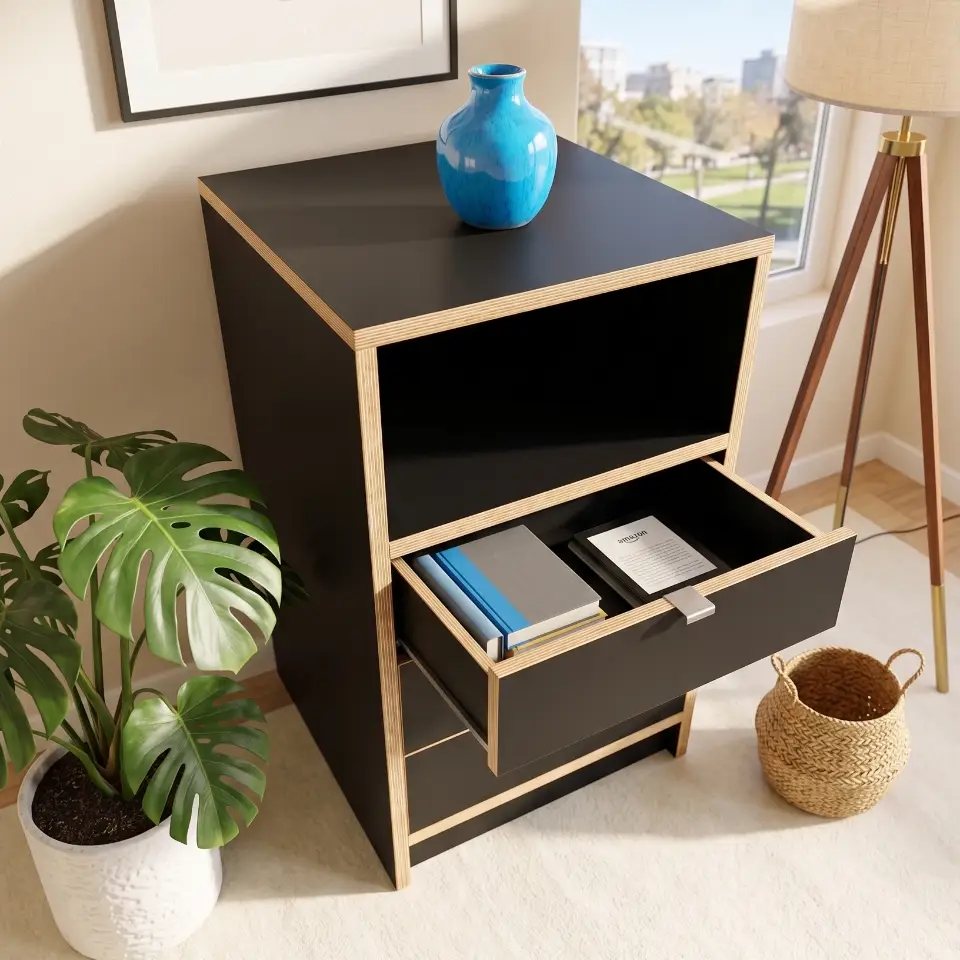

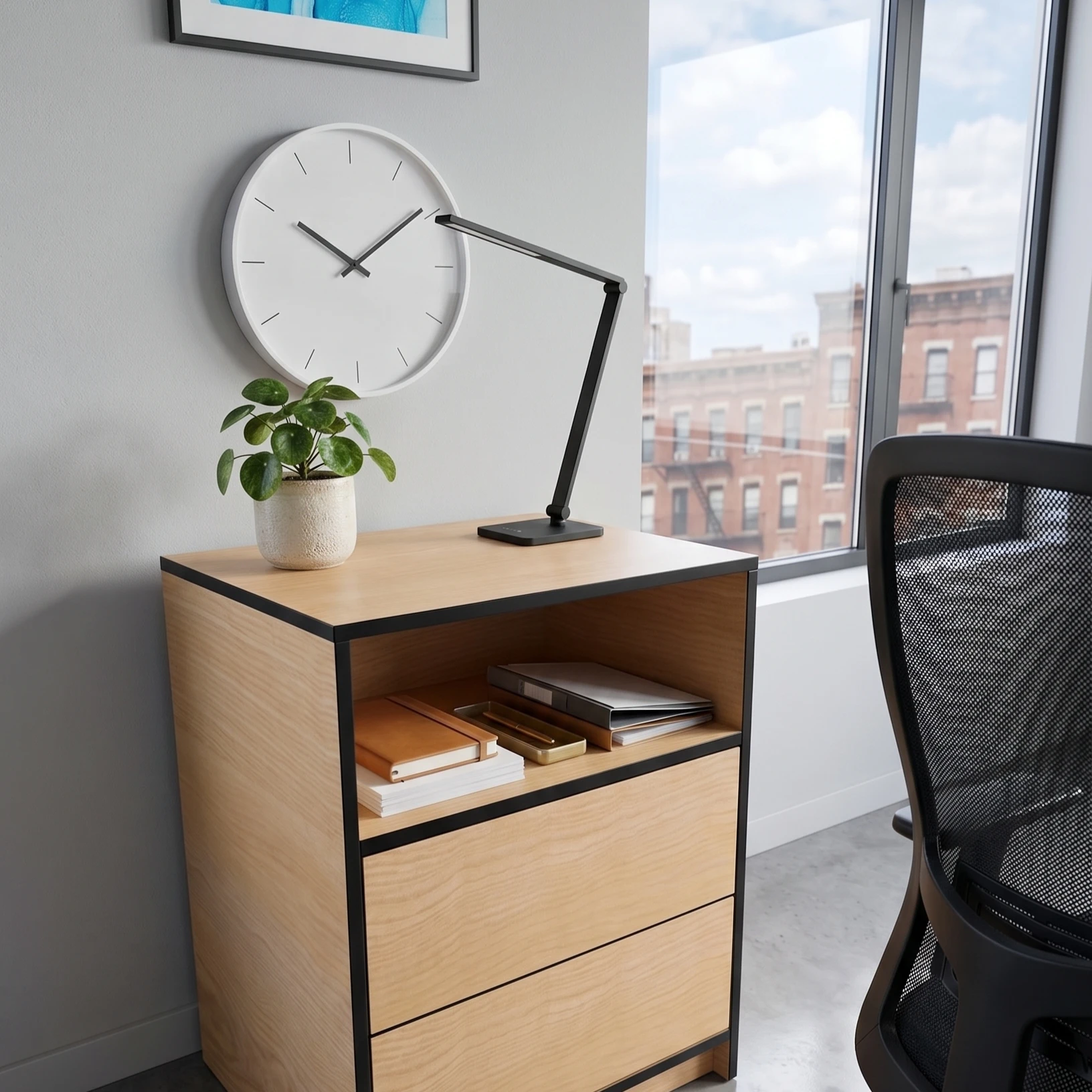

Drawer Cabinet with Top Shelf
Parametric drawers cabinet with a top shelf and equal-height drawers.
Try all adjustment parameters, visualize styling and generate the static plans with ModMaker.
Complete drawer cabinet plans with tons of adjustment options and dynamically nested.
Select the external width, height and depth, height of the shelf, quantity of drawers, clearance for the rails and material specs and ModMaker will calculate the maximum size for the drawers, draw the parts and nest the plans for maximum material optimization.
THIS MODEL IS NOT READY YET.
We still need to add parameter-dependent ranges and thoroughly test it.
We are working on the separation between the material for the bottom of the drawers which is thinner, and must be nested separately.
ModMaker
- Buy 1 Credit or Maker's PASS.
- Adjust parameters.
- Generate.
- Download DXF and SVG files.
* If you want to continue later or on your desktop, you can email yourself a link with your progress.
* 3D Preview: For visual representation. Generated files guarantee 100% geometric accuracy.
| Adjust parameters and click Generate Plans to see your custom files here... | |||
* Industry Standard Ready: Native DXF optimization for Vectric, AutoCAD, and LibreCAD.
* Zero-Retention Privacy: To safeguard your proprietary design variations, files are generated on-the-fly and never stored on our servers. Please ensure you save your downloaded plans securely.
Additional information
| Estimated milling duration | 15 mins |
|---|---|
| Suitable materials | Hardwood Plywood, MDF, Particle Board, Softwood Plywood |
| Boards quantity | 1 |
| Table size | 1200 round, 1200 x 1200 square |
| Brand | turnifure.com |
| License | Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) |
