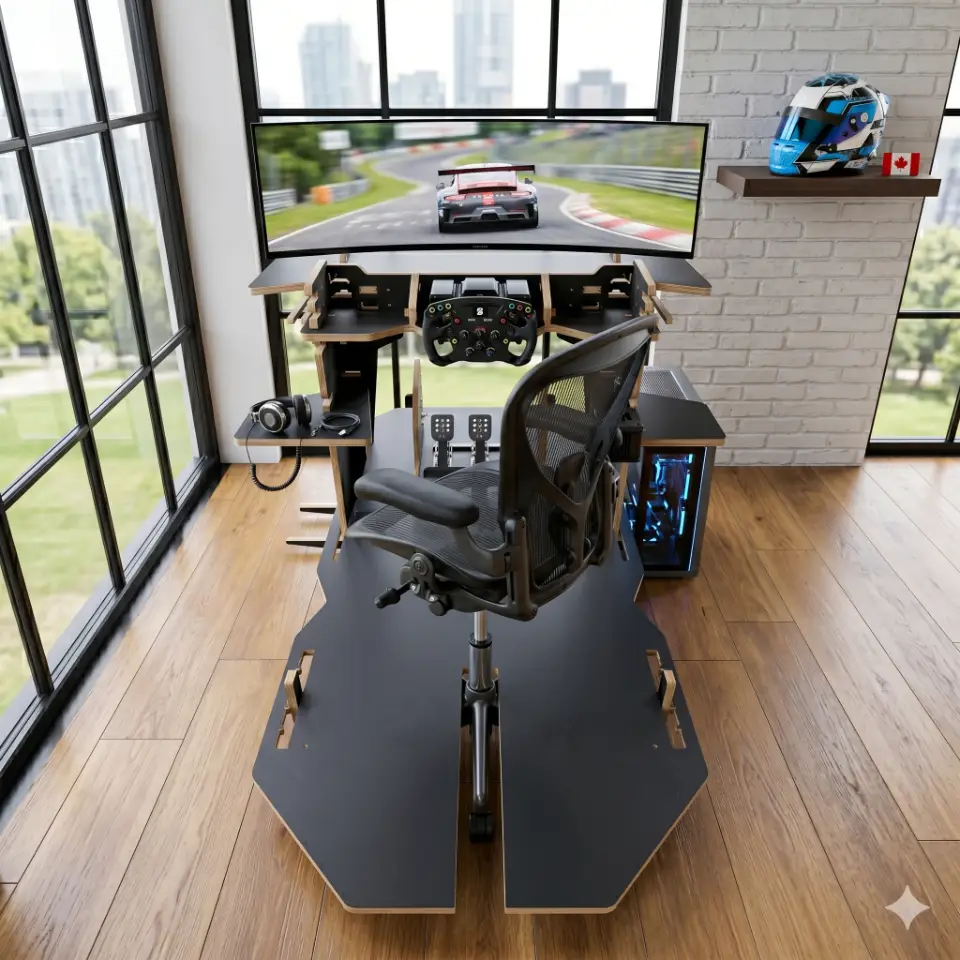

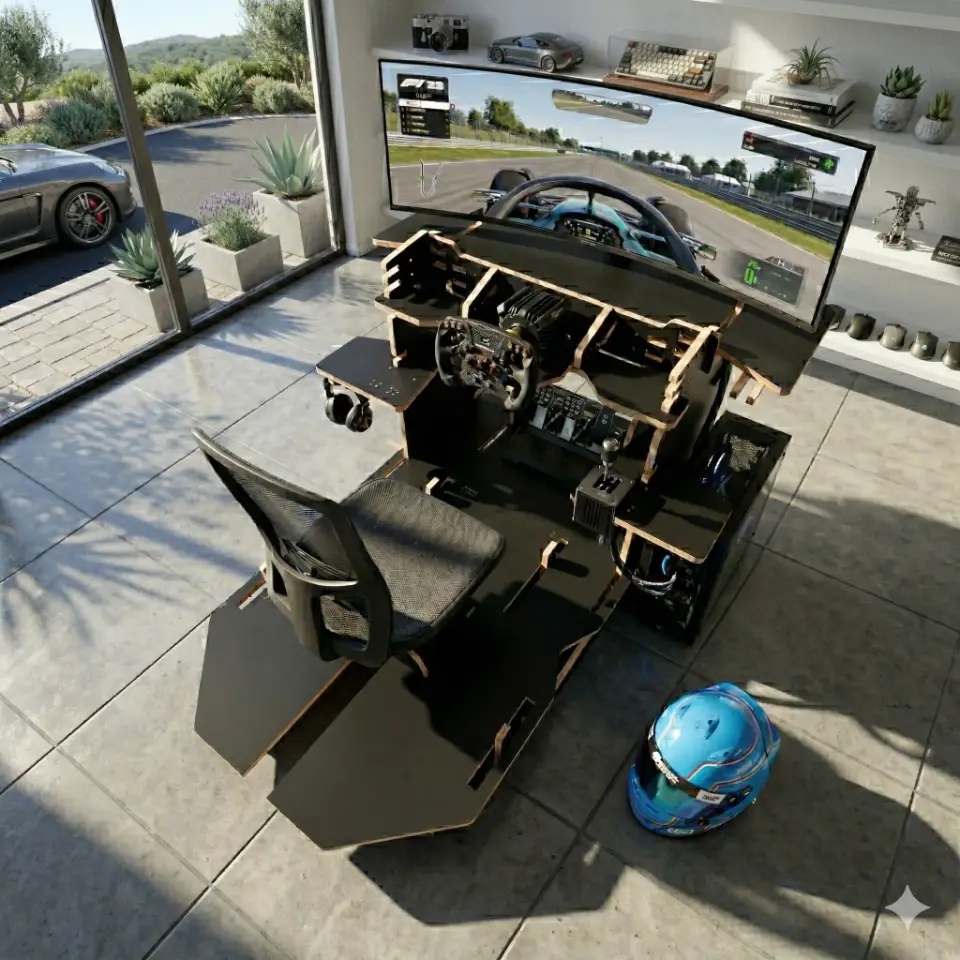

Rockpit – sim racing Rig

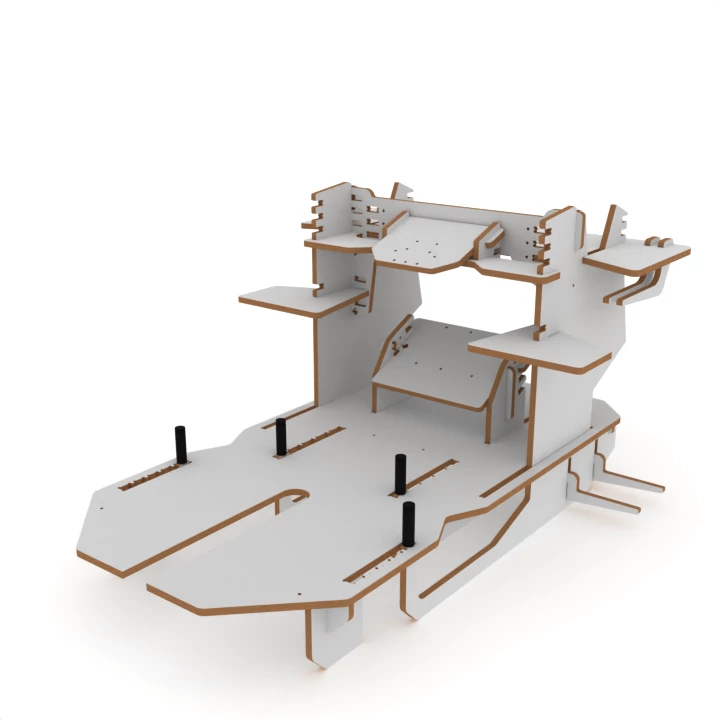

My sim racing cockpit design is done!
Specs
Adjustment options:
| Dimension | Positions | Range |
|---|---|---|
| Dash* depth | 5 | 200 mm |
| Wheel height | 4 | 120 mm |
| Wheel mount inclination | 2 | 0° or 20° |
| Pedals depth | 5 | 250 mm |
| Pedals height | 4 | 120 mm |
| Shifter & Mouse height | 4 | 120 mm |
| Monitor + Side hangers | 4 | 120 mm |
Description
A short recap on the development process:
On June 2021 I tried my cousins sim racing cockpit but I’m very tall, didn’t fit in it and ruined my knees. Moreover, the racing posture was awful due to that the Logitech G27 steering wheel he has was designed to mount on a standard desktop (way lower than your head) and the pedals on the floor, favoring global compatibility over realistic driving posture simulation with a vertical wheel, lower shifter knob and higher pedals. I decided to design my own sim racing cockpit to adapt the Logitech kits to a more realistic racing ergonomics and make it adjustable to fit everyone.
It is very sturdy, let you use your regular office chair, has plenty of wheel, pedals, shifter and monitor adjustment options with over 3000 combinations, has a pre-defined location for the CPU tower, place for your headphones, joysticks and VR headset, and it looks great.
Specs
Adjustment options:
| Dimension | Positions | Range |
|---|---|---|
| Dash* depth | 5 | 200 mm |
| Wheel height | 4 | 120 mm |
| Wheel mount inclination | 2 | 0° or 20° |
| Pedals depth | 5 | 250 mm |
| Pedals height | 4 | 120 mm |
| Shifter & Mouse height | 4 | 120 mm |
| Monitor + Side hangers | 4 | 120 mm |
*Dash is the main structure that holds the Wheel + Shifter + Mouse + Monitor + CPU + Other accessories
Features
- Heavy Duty
- Universal Mounting Holes
- Extra peripherals locations (table-tops and hangers)
- Spacious 1180 mm monitor stand
- CPU location with adjustable depth & 360° clearance for ventilation
- Styling Options – Available in White and Black MDF
- Easy Assembly
Heavy Duty
It is super strong – Inserts based structures are strong to begin with but I added bolts + t-nuts in all critical joints and made it rock solid.
Universal mounting holes
It comes with the holes for mounting most Logitech, Thrustmaster and Fanatec wheels, pedals and gear shifters so you can mount them without having to drill yourself. Check your gear or drilling template, it should match one of these combinations.
Mounting holes for the Logitech, Thrustmaster & Fanatec wheel, pedals and shifter
Extra peripherals locations
I also added many spots for common accessories so they remain organized & within reach.
Many options to have your peripherals organized.
Large monitor stand
The monitor stand is 1280 x 330 mm and well supported to place your monitors & gaming consoles.

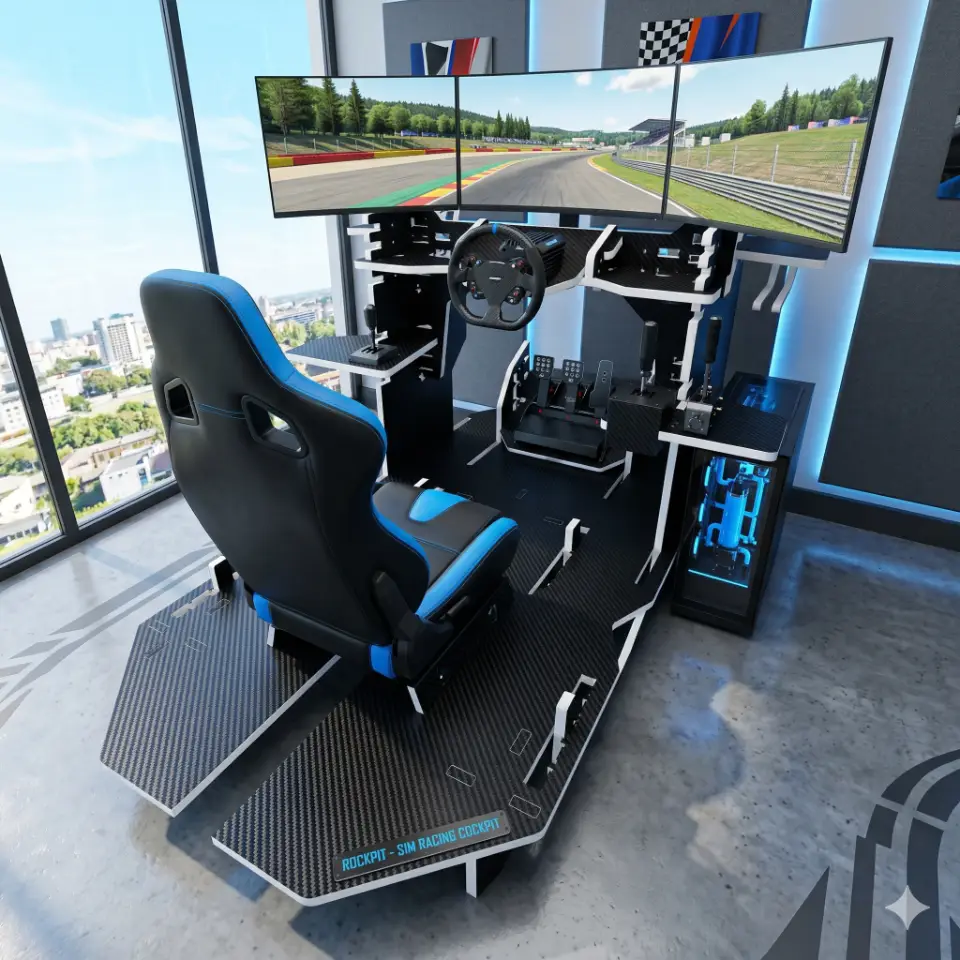

Project Cockpit large stand with a 3 monitor setup.
Dedicated CPU base
A predefined location for the CPU with enough room for an ATX mid-tower, all-around clearance for good ventilation and depth adjustment with the dash. Don’t use a tower? The supports are removable.
Fast & easy assembly process
My assembly animations make the process super easy. Check out this high speed version ⬇️.
Milling Specs
This plan is set up to be milled with 5 different tools to optimize for speed and precision.
Estimated Milling Duration- Board 1: 3 Tools – 23 mins
- Board 2: 5 Tools – 34 mins
Milling Simulations Time-Lapse
☝ Note: Every CNC machine is different and makers use different tools, milling strategies and speeds.

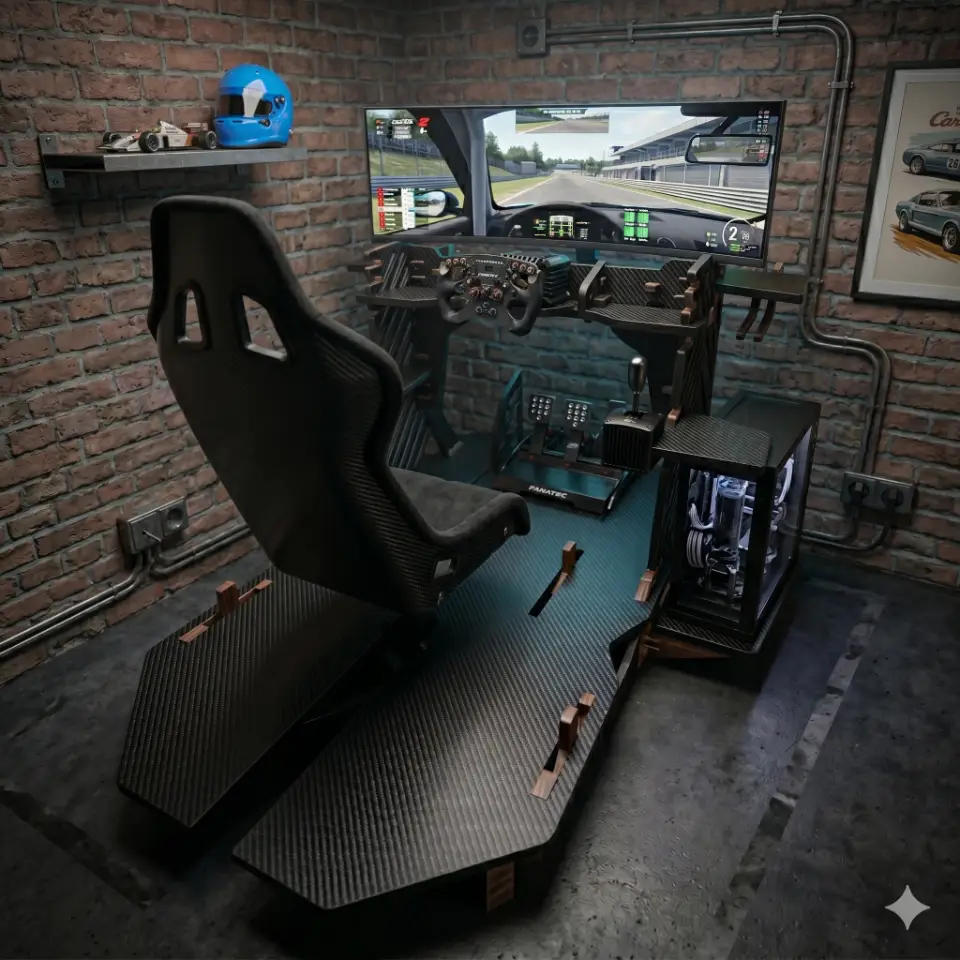

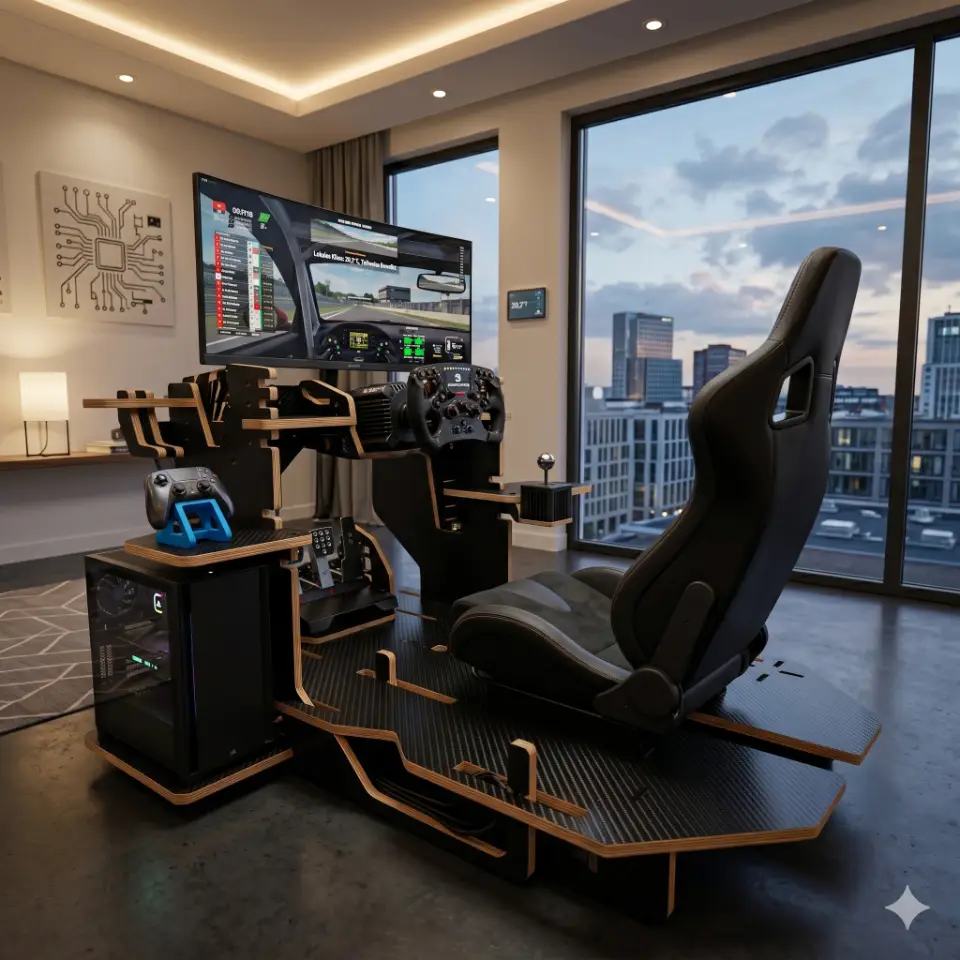

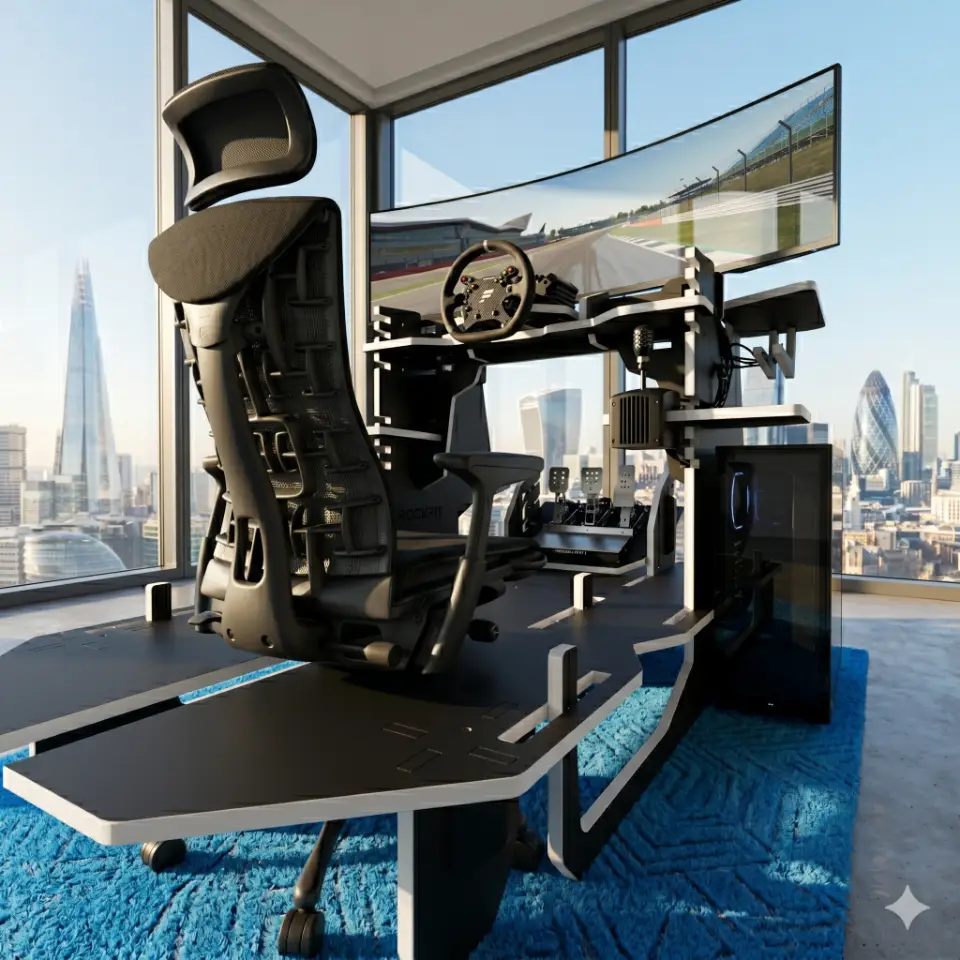

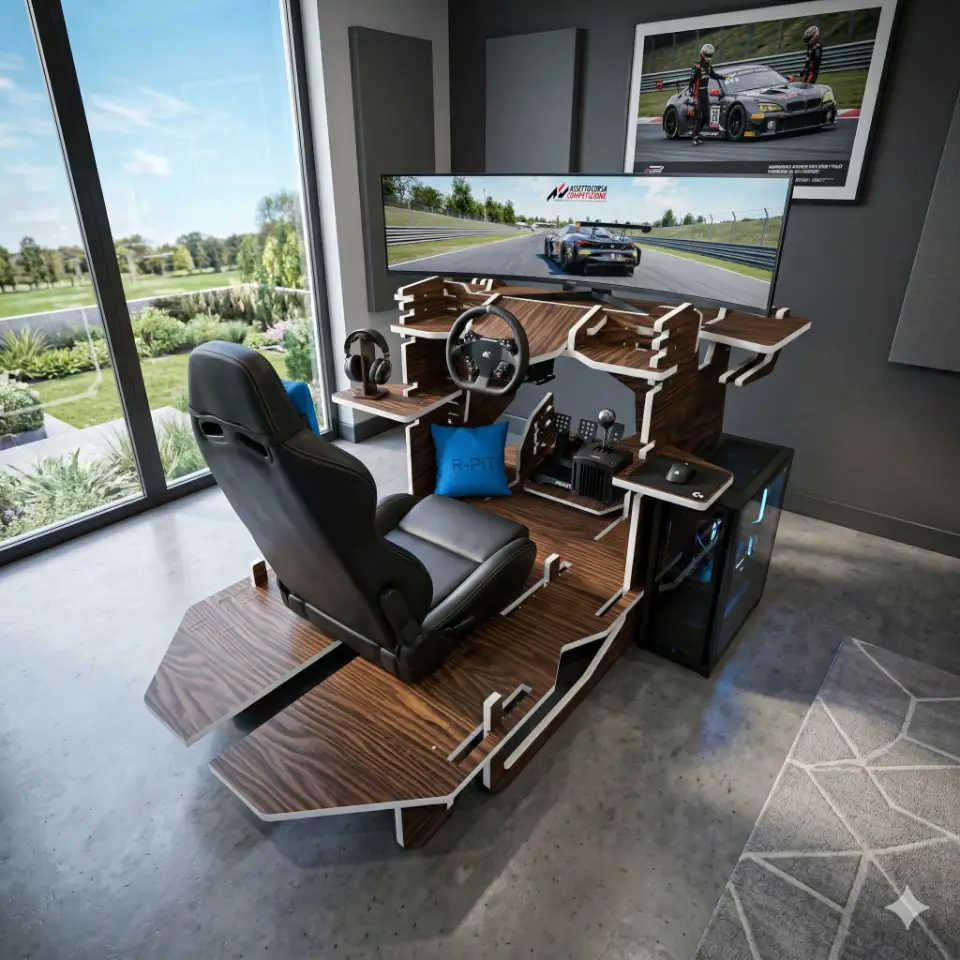

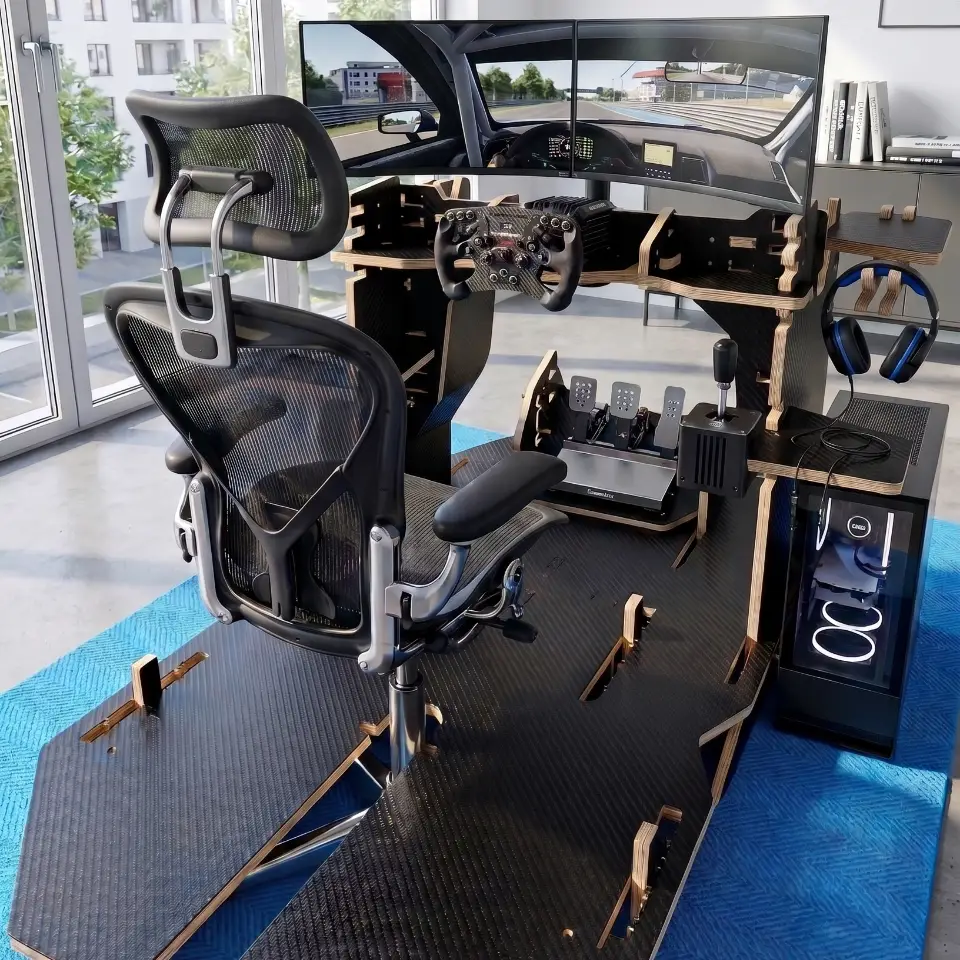

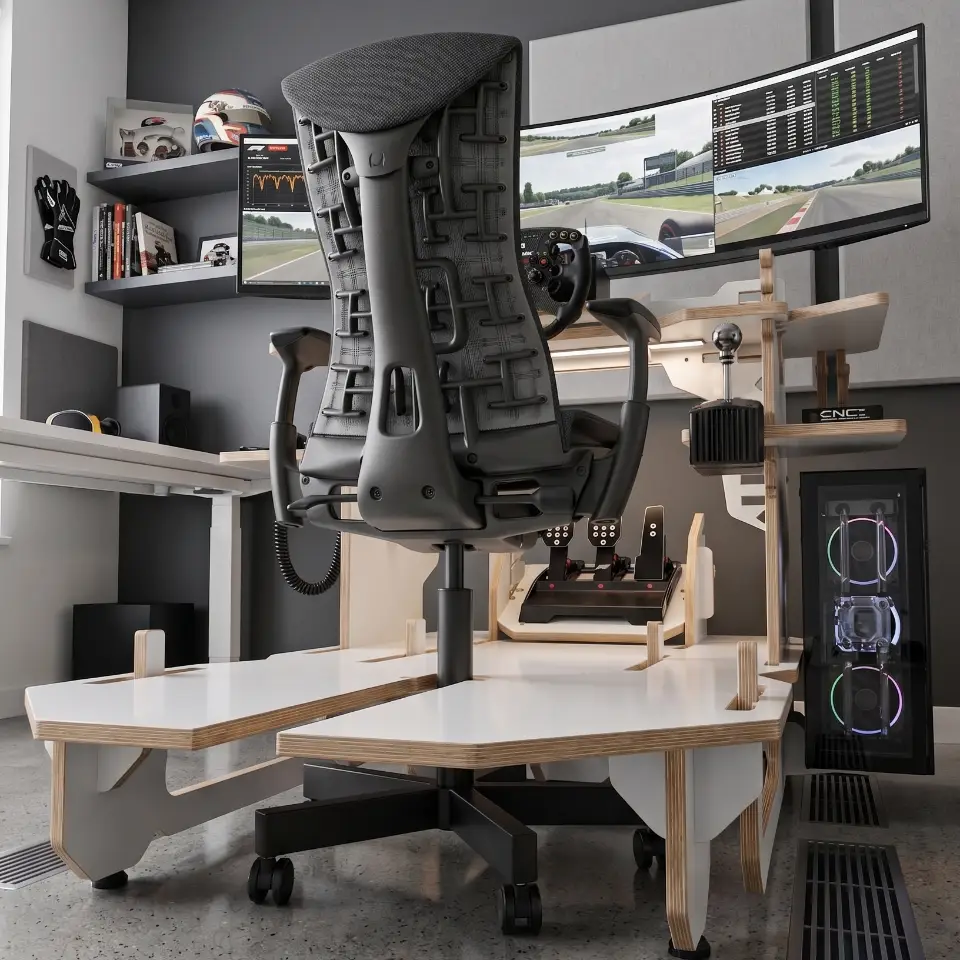

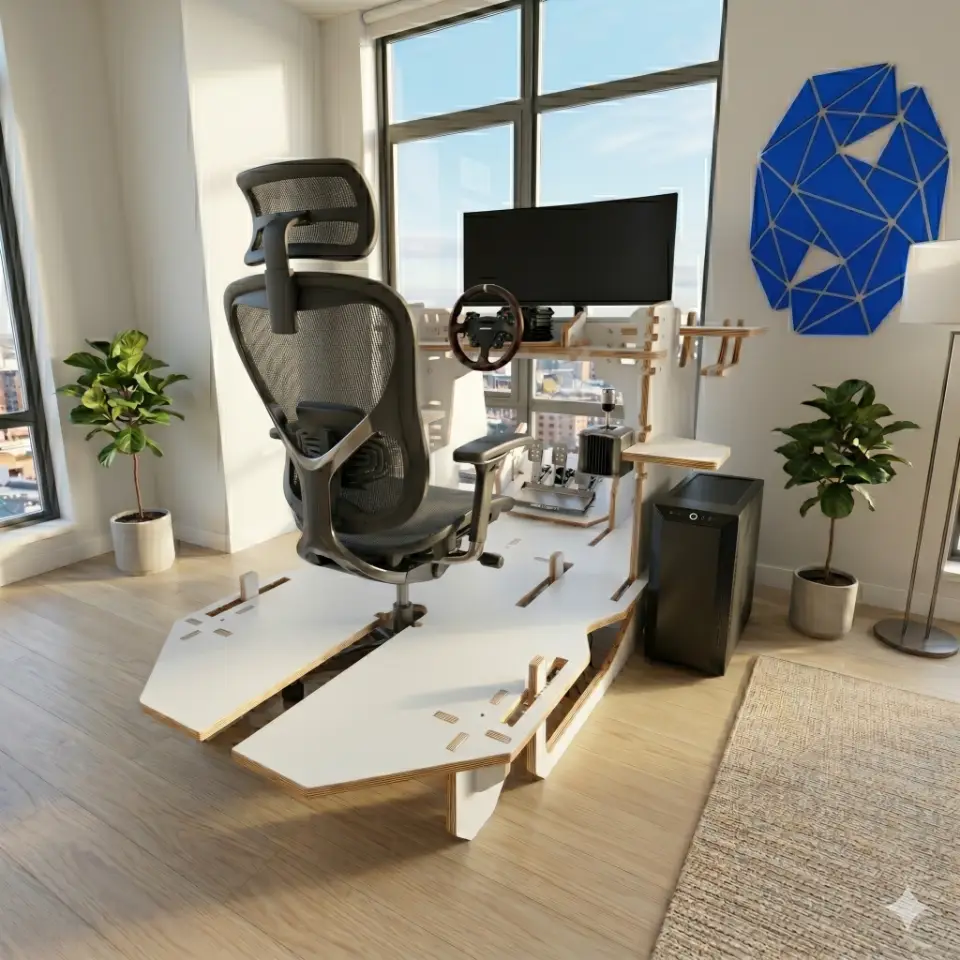

Styling Simulator
This styles wont be available everywhere, availability might vary on the materials and costs in each country.
👉 Wanna read my dev updates with insights, hows, whys, and more specs and schemes? Start here.
👉 Got questions, comments or feedback? Shoot here.
Additional information
| Board thickness | 18 mm – International, 3/4 in (19 mm) – US |
|---|---|
| Board size | 1220 x 2440 mm | 4 x 8 feet |
| Boards quantity | 1 |
| Desk Width | 1200 mm |
| Estimated milling duration | 15 mins |
| Suitable materials | Hardwood Plywood, MDF, Softwood Plywood |
| Brand | turnifure.com |
| License | Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) |
