Test pair to try the insert gaps before generating production plans. Each hole adds 0.05 mm to the width of the slot.

See detailed parameters in ModMaker

Category:

Test pair to try the insert gaps before generating production plans.

Step by Step

  1. Measure

    Grab your thickness gauge and measure the board precisely.

  2. Generate the Test Pair

    Go here, slide to your measured thickness and get a generate a test pair.

  3. Cut & Test Inserts

    Cut those pieces from a sample of your material and try the inserts.

  4. Understand Inserts

    Depending on your model, you should have Tight and (in some cases) Loose Inserts sliders.

    • Tight Inserts are the ones to fit once only, during assembly, and are supposed to stay rock-solid.
    • Loose Inserts are for daily adjustments like the positions in playDesk2 and Rockpit.
  5. Check Fit & Count Dots

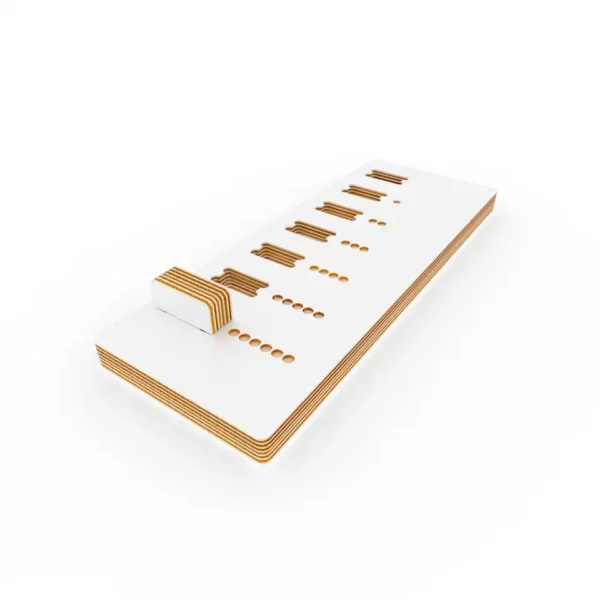

    Check how tight and loose your inserts feel on your sample material and count the dots. Each dot in the test board ads 0.05 mm to the width of the slot (the first one is the thickness you entered in Step 2 and the last one is 0.3 mm wider).

  6. Write it down

    Take note of the ones that fit perfectly for your intended use.

  7. Generate & Download

    Once you’re confident with your chosen fits generate your production plans and download.

  8. Work Your Magic 🪄

    From here on, plan the cuts, execute and style it with your own personal touch.



ModMaker

How to:
  1. Unlock the Model (non-free models).
  2. Adjust parameters.
  3. Generate.
  4. Download DXF and SVG files.

* Sliders work best on desktop. For more precision email yourself this page and continue there.


Generated Files
Mods Balance:

* DXFs are optimized for Vectric, Autocad and Librecad. Request others or report issues here.

* Generated files are NOT stored! Remember to download and save them locally.
