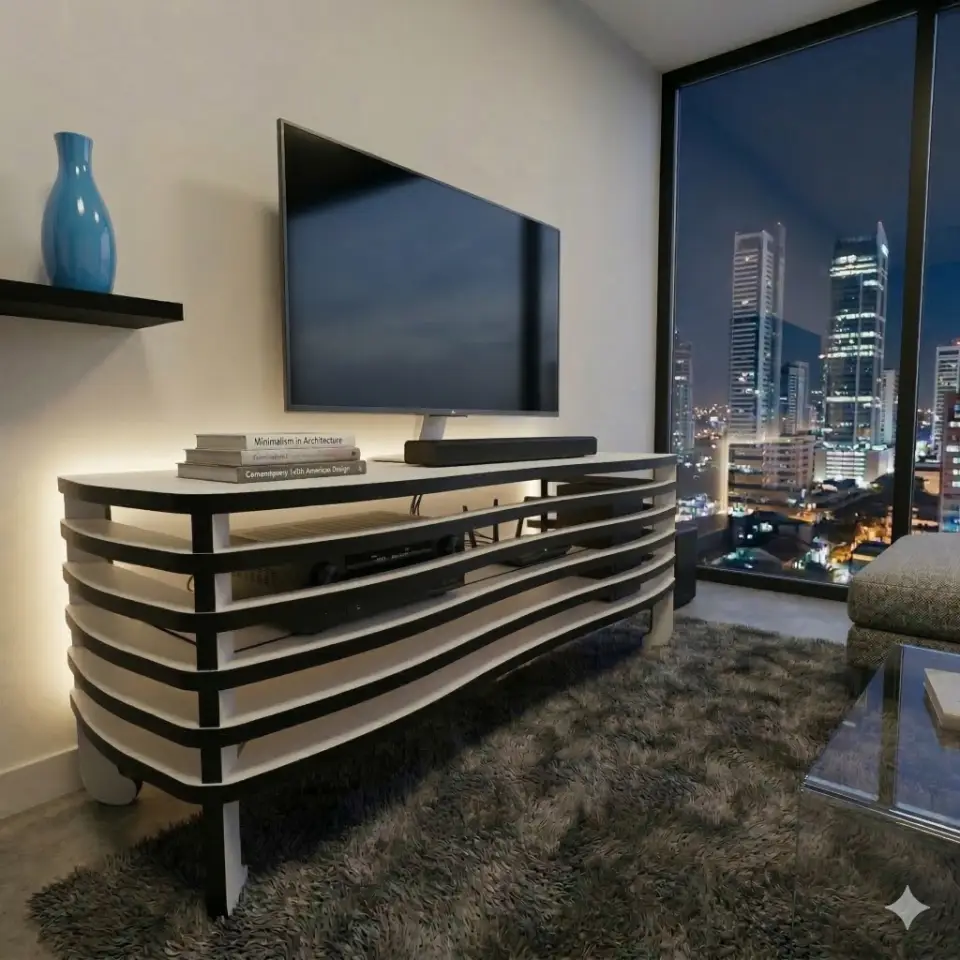

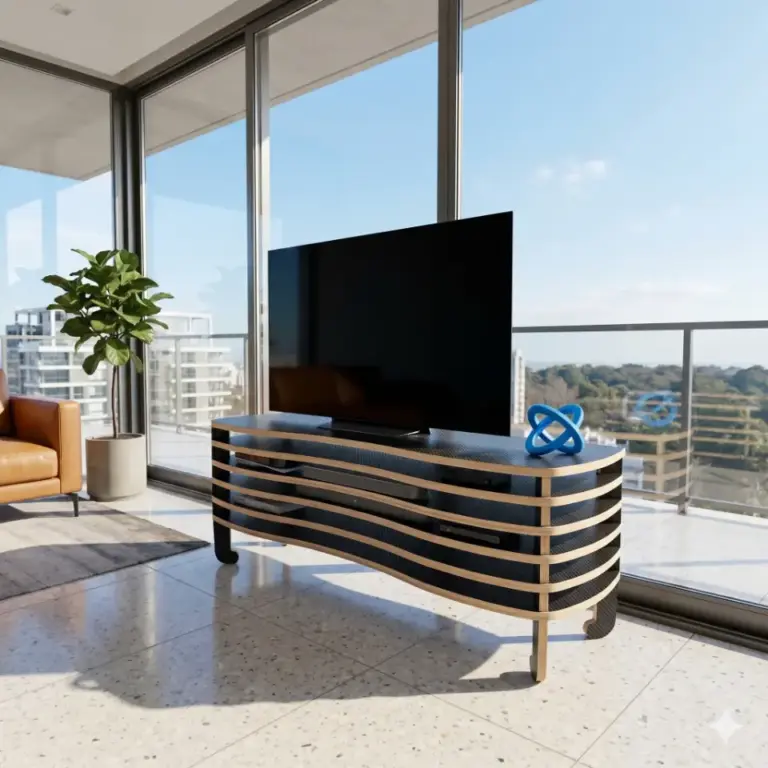

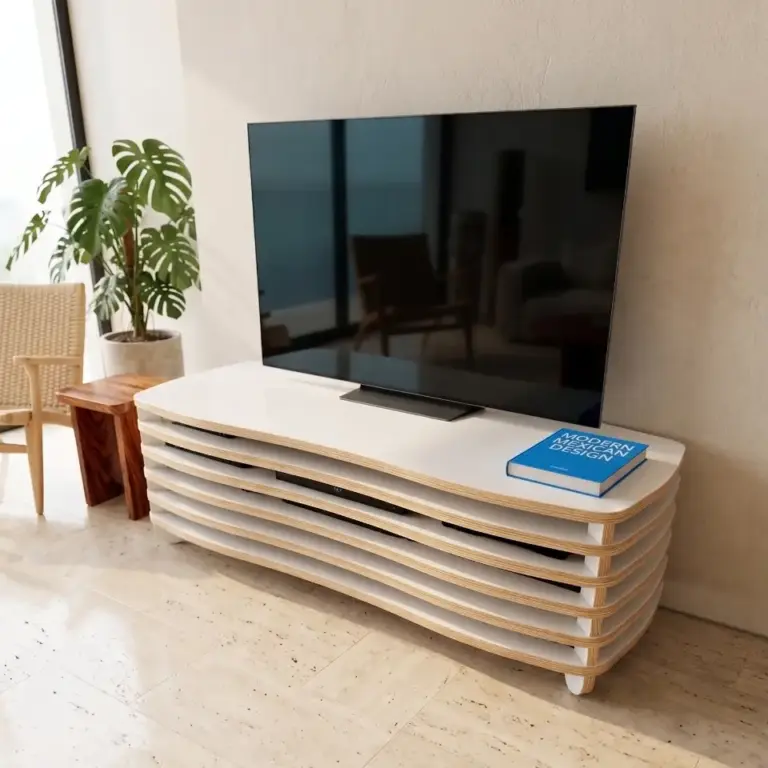

CNC Plans for Wavy Rack - Medium Height (50 cm) TV Rack and Stand - Material: 18 mm
Customize this Plan
Click to access ModMaker / Adjust Specs / Preview other Materials
Concepts
Specifications
| Parameter | Description | Value |
|---|---|---|
| Material Thickness | Thickness of your material | 18 mm |
| Permanent joints fit | Permanent joints tightness. 0 = very tight, 0.2 = looser | 0.11 mm |
| Tool bit diameter | Radius of the fillets and smallest concave curves. | 6.46 mm |
| Base height | The height of the base (lowest surface). Default is 160 mm. | 180 mm |
| Level 1 height | The height available for appliances on top of the base shelf. Default is 90 mm. | 150 mm |
| Level 2 height | The height available for appliances on top of the middle shelf. Default is 160 mm. | 150 mm |
| Material Width | Length of Side A of the nesting bin | 1220 mm |
| Material Height | Length of Side B of the nesting bin | 2440 mm |
Frequently Asked Questions
What material thickness is required for these plans?
These specific CNC plans are parametrically designed for 18 mm material. We recommend using high-quality Baltic Birch plywood or MDF that matches this thickness for the best fit.
What file formats are included?
This digital download includes DXF and SVG files, compatible with VCarve, Fusion 360, Shaper Origin, and most other CNC software.
