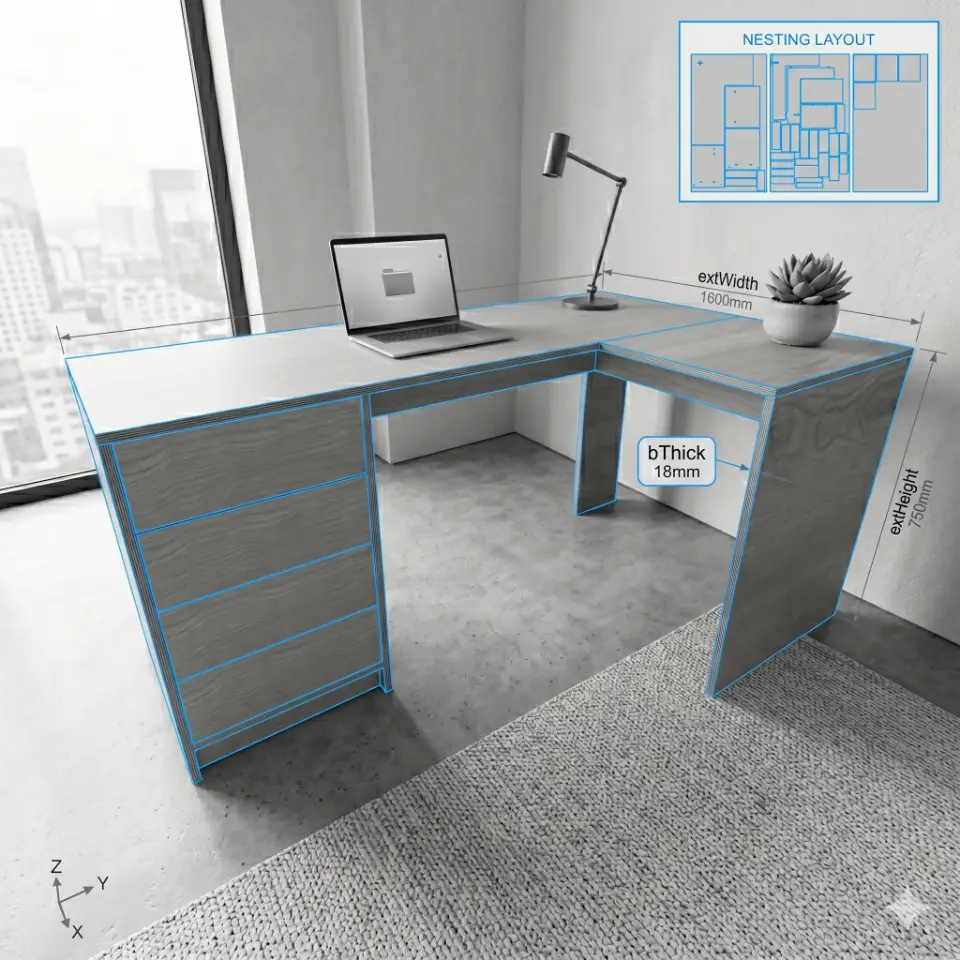

CNC Plans for L-Desk with Drawers Module (beta) - Executive Desk - Material: 3/4 in
Customize this Plan
Click to access ModMaker / Adjust Specs / Preview other Materials
Concepts
Specifications
| Parameter | Description | Value |
|---|---|---|
| Material Thickness | Thickness of your main material | 3/4 in |
| Permanent joints fit | Permanent joints tightness. 0 = very tight, 0.2 = looser | 0.1 mm |
| Drawer bottom board | Thickness of the drawer's bottom material | 6 mm |
| Tool bit diameter | Radius of the fillets and smallest concave curves | 6.1 mm |
| Side A Length | Length of Side A of the Desk | 2000 mm |
| Side B Length | Length of Side B of the Desk | 1200 mm |
| Desk Height | Height of the Desk | 750 mm |
| Drawers Depth | The depth of the drawers (rails length bound). | 500 mm |
| Gap above drawers | The gap above all drawers | 10 mm |
| Drawer Bot Clearance | The space for bottom rails below the drawer base | 27 mm |
| Drawer-Sides Clearance | The gap between the drawer and cabinet sides | 12 mm |
| Drawers Quantity | The quantity of equal-height drawers | 5 |
| Material Width | Your board width for automatic nesting | 1220 mm |
| Material Height | Your board height for automatic nesting | 2440 mm |
| Desk Depth | The depth of both sides of the L-Desk and the module | 600 mm |
| Module Width | The exterior width of the module | 500 mm |
Frequently Asked Questions
What material thickness is required for these plans?
These specific CNC plans are parametrically designed for 3/4 in material. We recommend using high-quality Baltic Birch plywood or MDF that matches this thickness for the best fit.
What file formats are included?
This digital download includes DXF and SVG files, compatible with VCarve, Fusion 360, Shaper Origin, and most other CNC software.
